Cizalla guillotina QC11K

La cizalla guillotina es un equipo de corte de metal de alta precisión accionado por un sistema hidráulico. Maneja chapas metálicas de diversos espesores y durezas, y se utiliza ampliamente en la producción a gran escala y el procesamiento personalizado en la industria metalúrgica.

La cizalla guillotina es una opción muy popular entre los compradores de todo el mundo para el corte de chapas debido a su capacidad para ajustar la holgura y el ángulo de la cuchilla. Cuando se cortan chapas con un espesor superior a 13 mm, es la mejor opción para cortar chapas gruesas en la producción a gran escala.

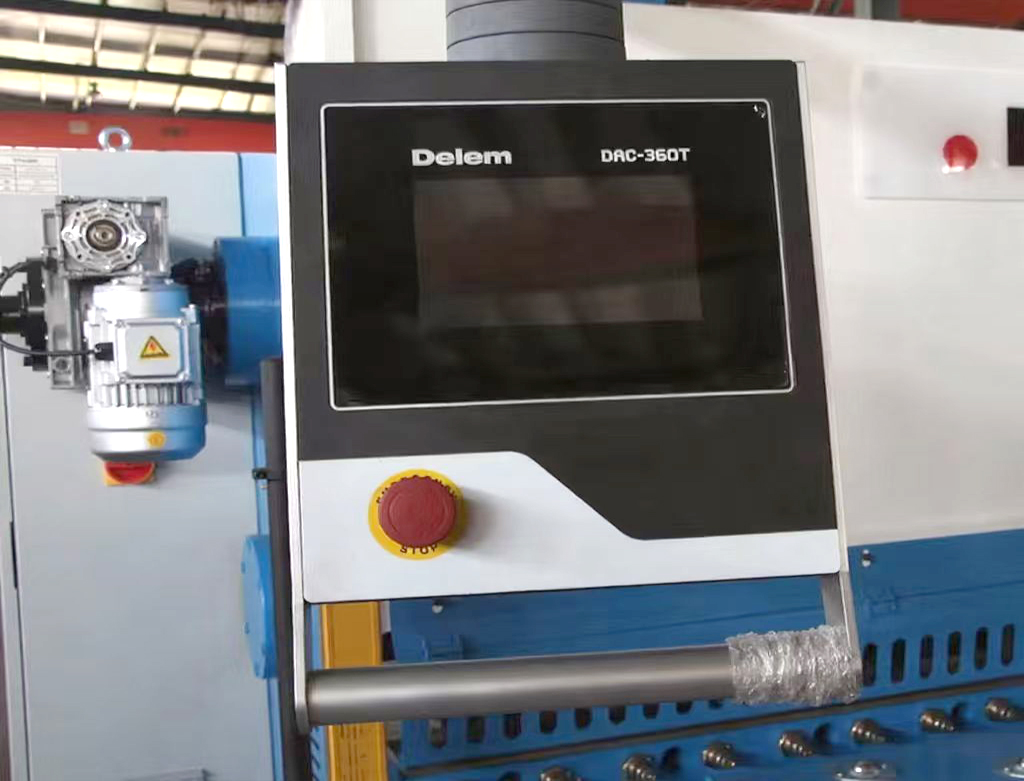

Control System

The guillotine shearing machine is equipped with a Dutch Delem brand DAC360 CNC system, which is now upgraded to the DAC360T touch screen version, serving as the controller.

The system allows for the control and adjustment of the back stop, blade angle, and blade gap. Alternatively, the E21S digital display controllers are available as options.、

Solicite una cotización

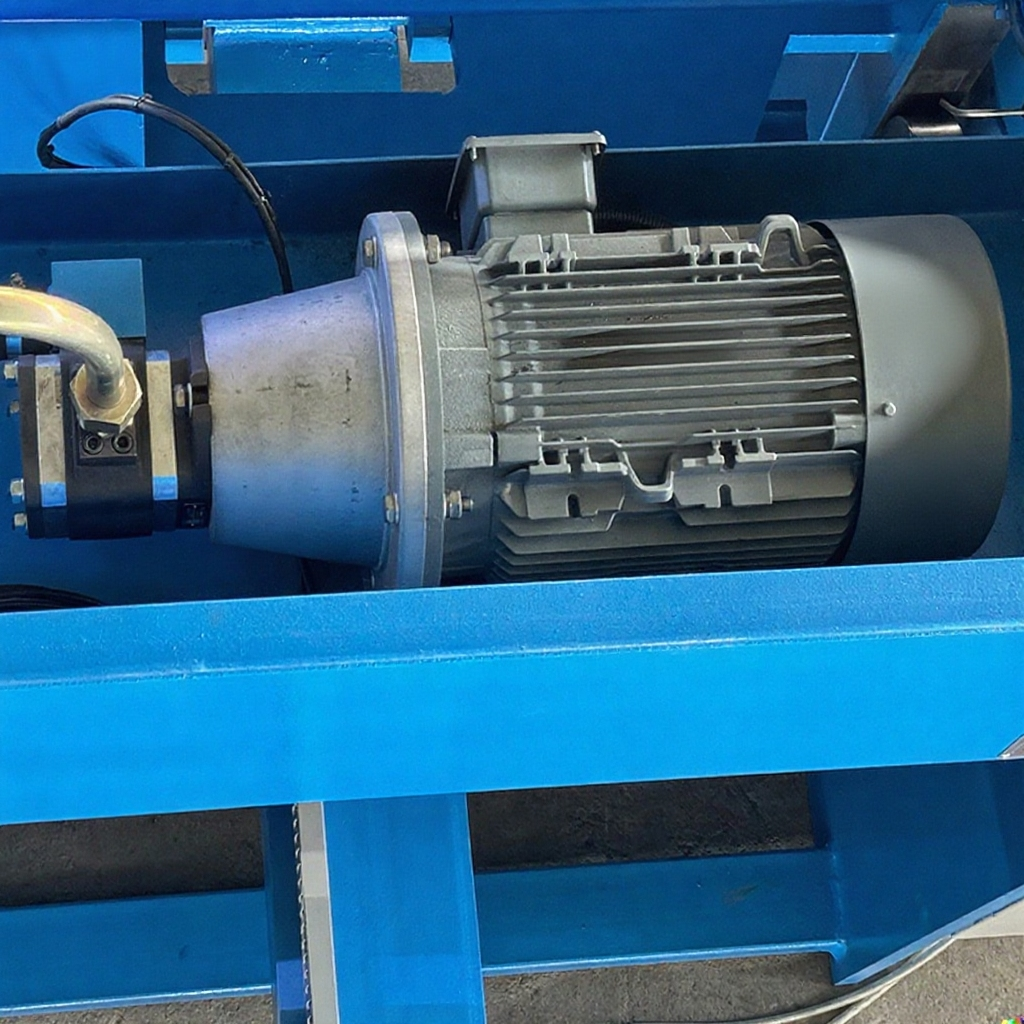

Motor

Motor ensures precise control over angles and dimensions , maintaining high accuracy in production processes.

Our high-performance main motor can be equipped with internationally recognized brands, such as Siemens, or with well-known Chinese brands like Wannan.

Solicite una cotización

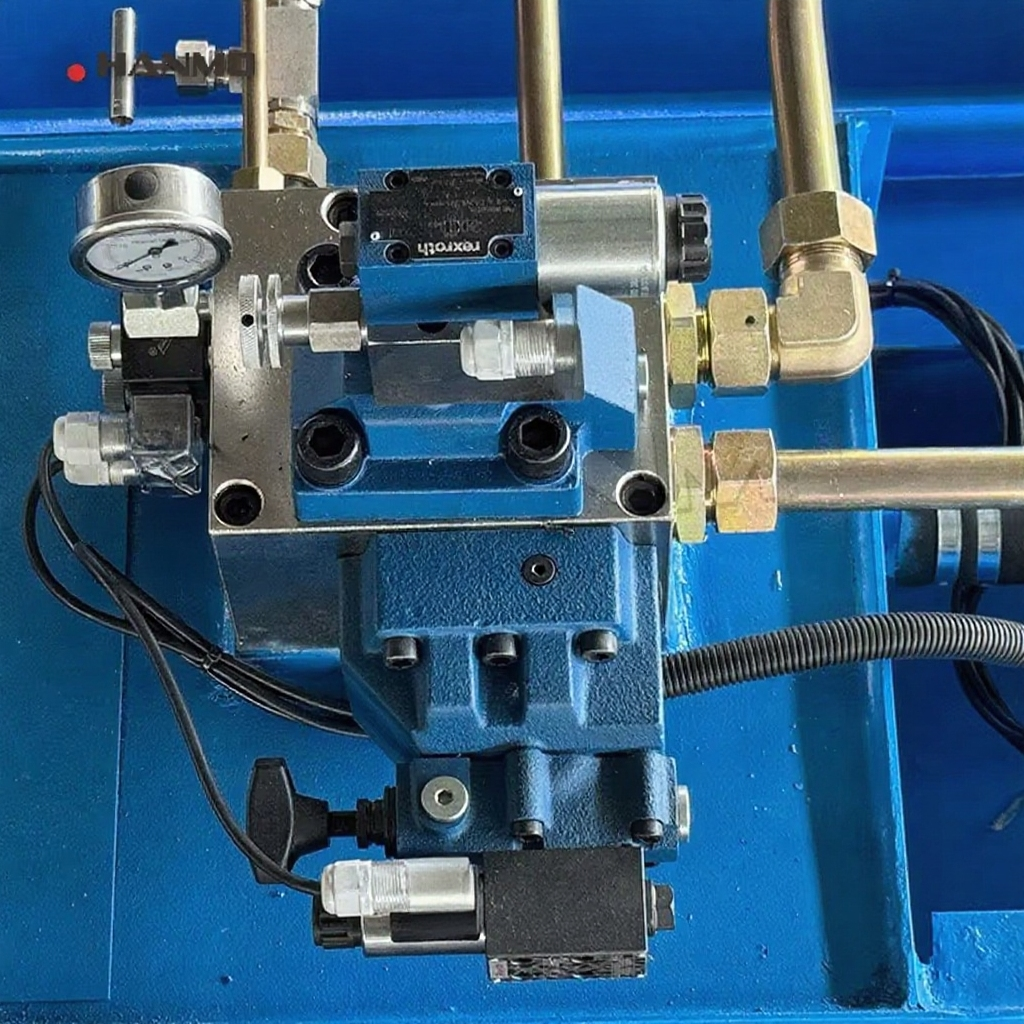

Hydraulic Valve

Bosch Rexroth valves provide reliable performance, ensuring long-term stability and enhancing the shearing machine’s durability .We provide real-time oil pressure monitoring to ensure smooth oil circuit operations and stable equipment performance.

Thanks to our oil pressure overload protection system, oil leakage and valve jamming are rare occurrences on our machine. Optimizing fluid flow reduces energy consumption, thereby lowering operational costs.

Solicite una cotización

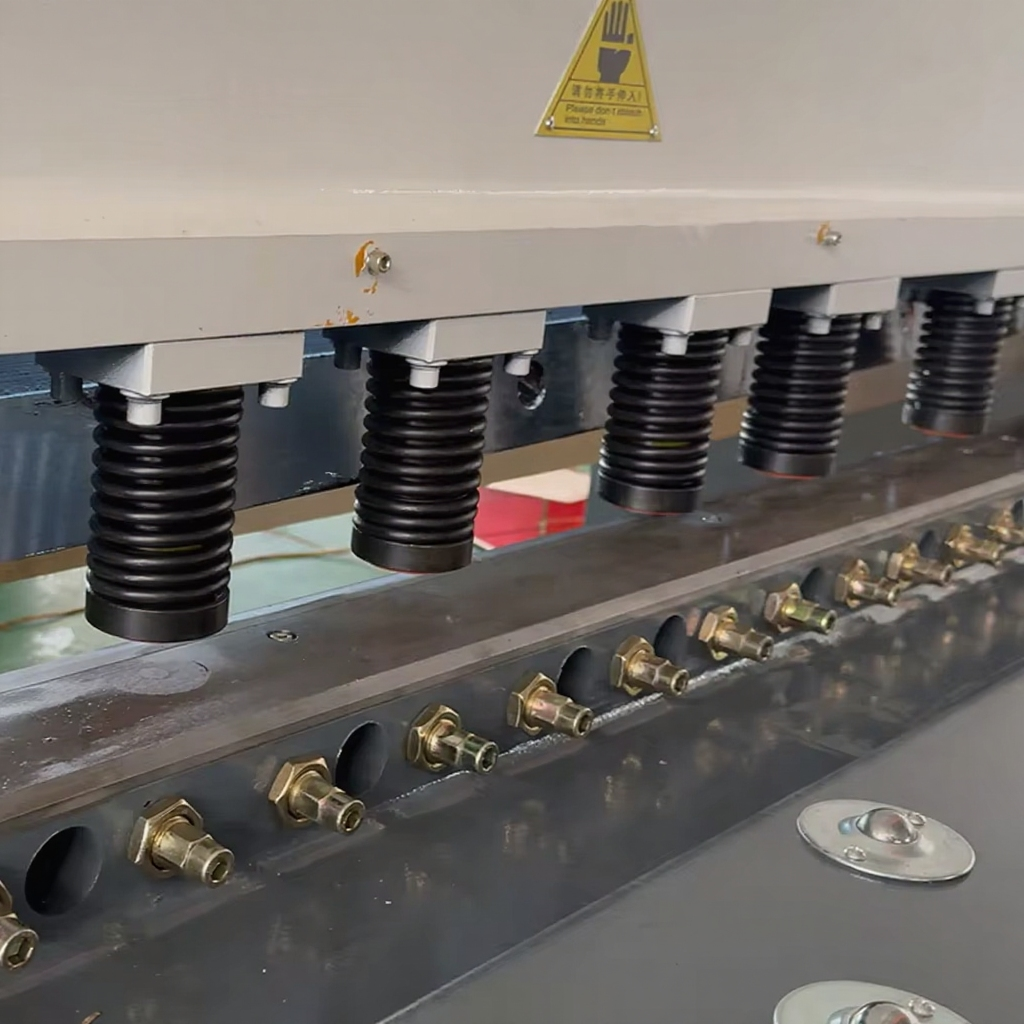

Presser

The presser foot firmly secures the material , preventing movement during shearing , ensuring line accuracy and consistency.The presser foot evenly distributes pressure during shearing , preventing deformation and maintaining material flatness and shape.

The flexible design of the presser foot accommodates different thicknesses and materials , ensuring optimal shearing results

Solicite una cotización

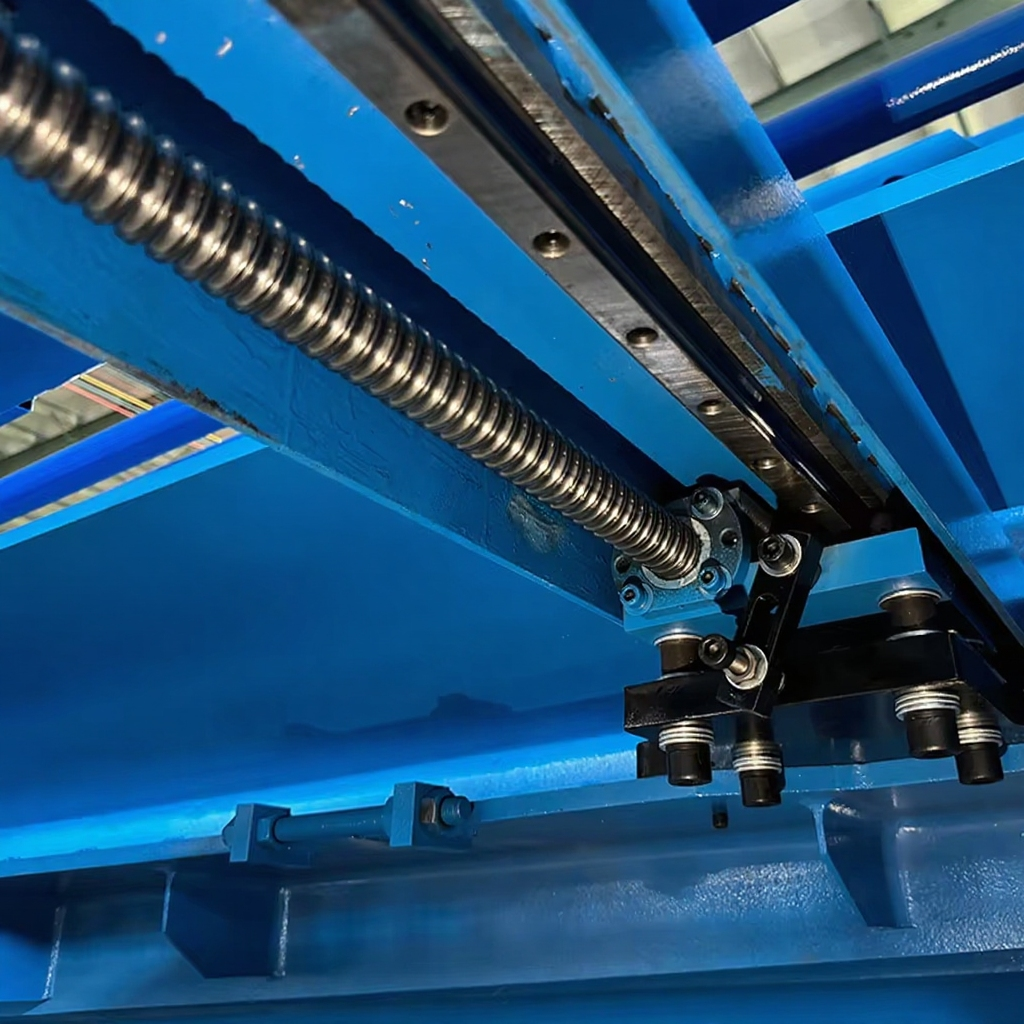

Ball Screw And Line Guide

The linear guide rail and ball screw ensure precise positioning of the back gauge , essential for accurate cutting.

The ball screw’s transmission and linear guide rail’s stability provide smooth back gauge movement , reducing vibration and noise .

Solicite una cotización

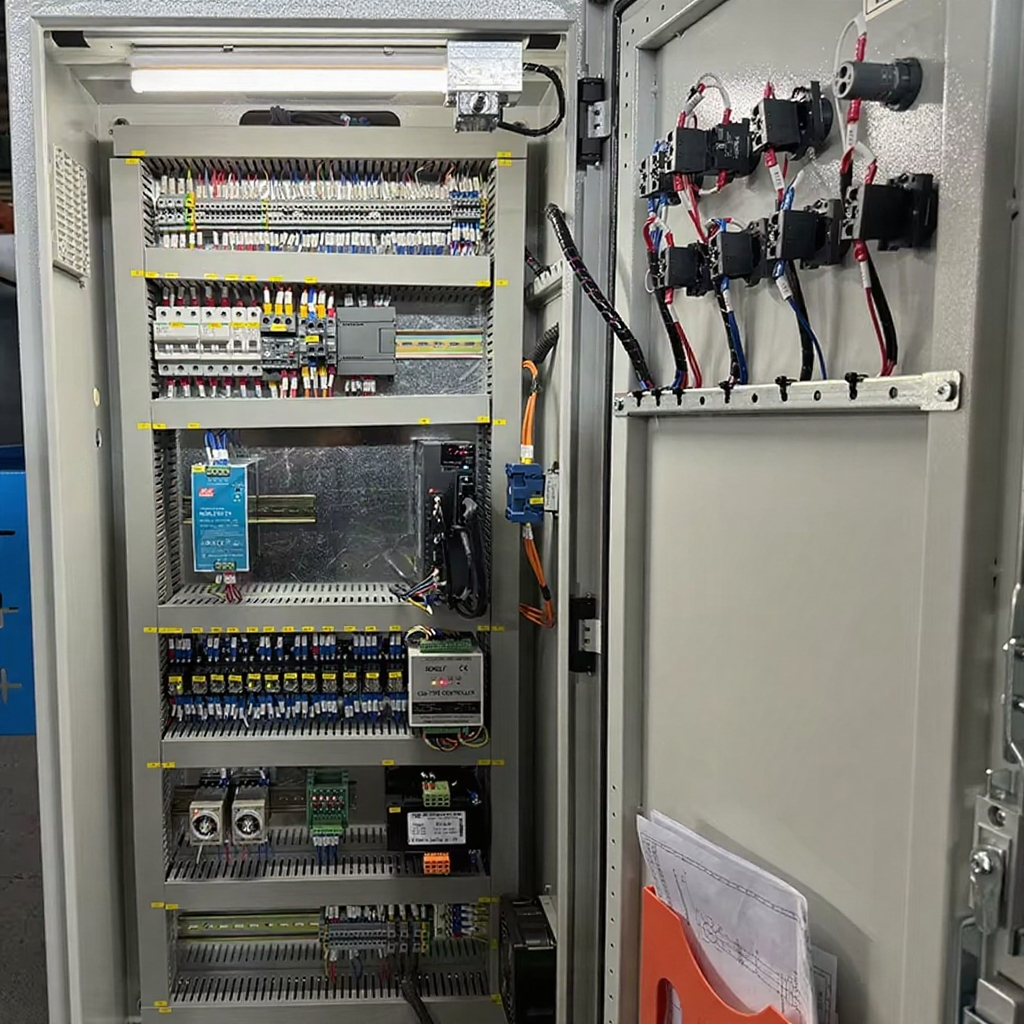

Electrical Parts

Advanced technology integrated in to the system meets high operational demands , optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
