Máquina ranuradora horizontal en V

Las máquinas ranuradoras horizontales en V son máquinas CNC a gran escala que se utilizan para ranurar chapas metálicas. Utilizan una mesa de trabajo fija y un portaherramientas móvil con pórtico, capaces de procesar ranuras complejas, como ranuras rectas y en V.

Gracias a su amplio rango de procesamiento y su alta precisión, son especialmente adecuadas para el mecanizado de piezas de chapa metálica de gran tamaño y se utilizan ampliamente en la fabricación de maquinaria y la producción de estructuras metálicas.

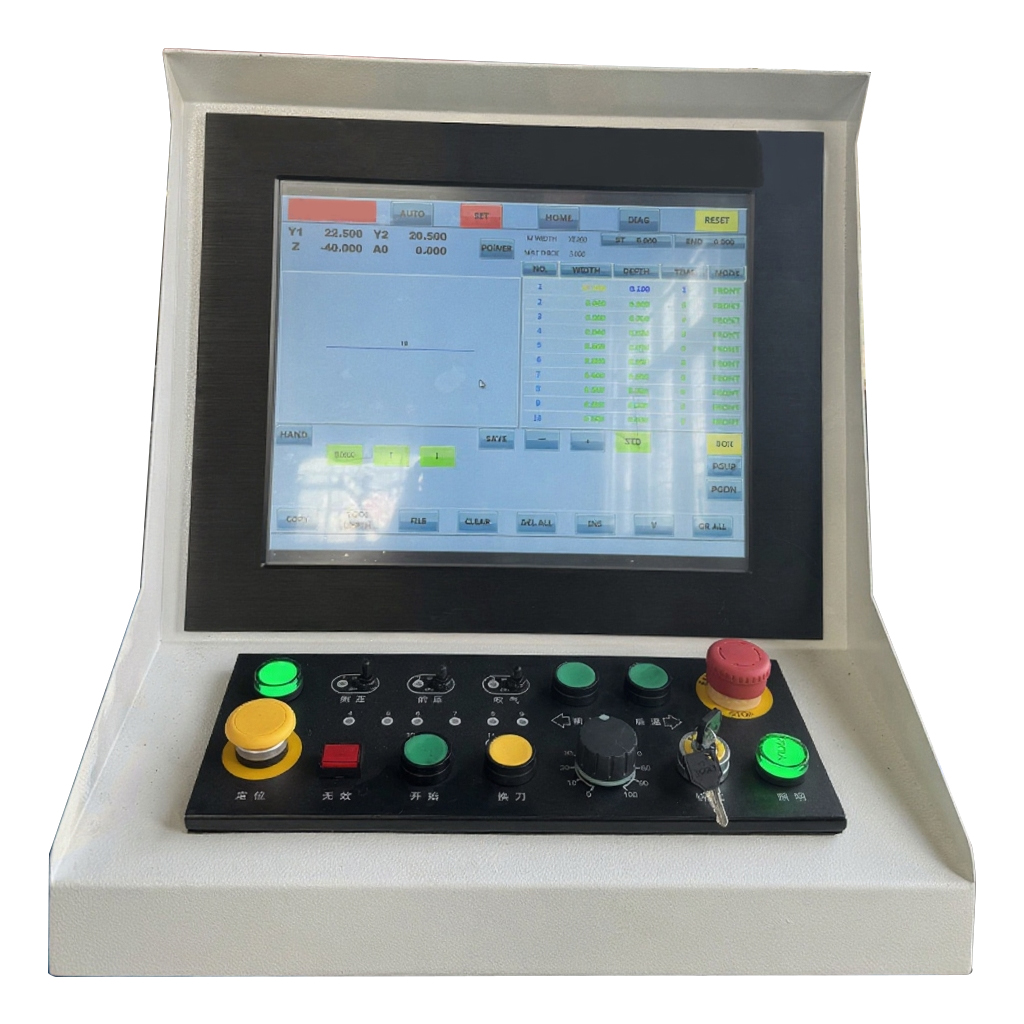

Control System
The Abel CNC Control System delivers high-precision machining with support for multiple programming methods, including G-code. Its intuitive interface and automation features boost efficiency, while real-time monitoring ensures accuracy.

Built for reliability, it handles complex tasks with fast response times and minimal maintenance. Ideal for industrial use, Abel CNC combines precision, ease of use, and durability for superior performance.
Solicite una cotización
Control System

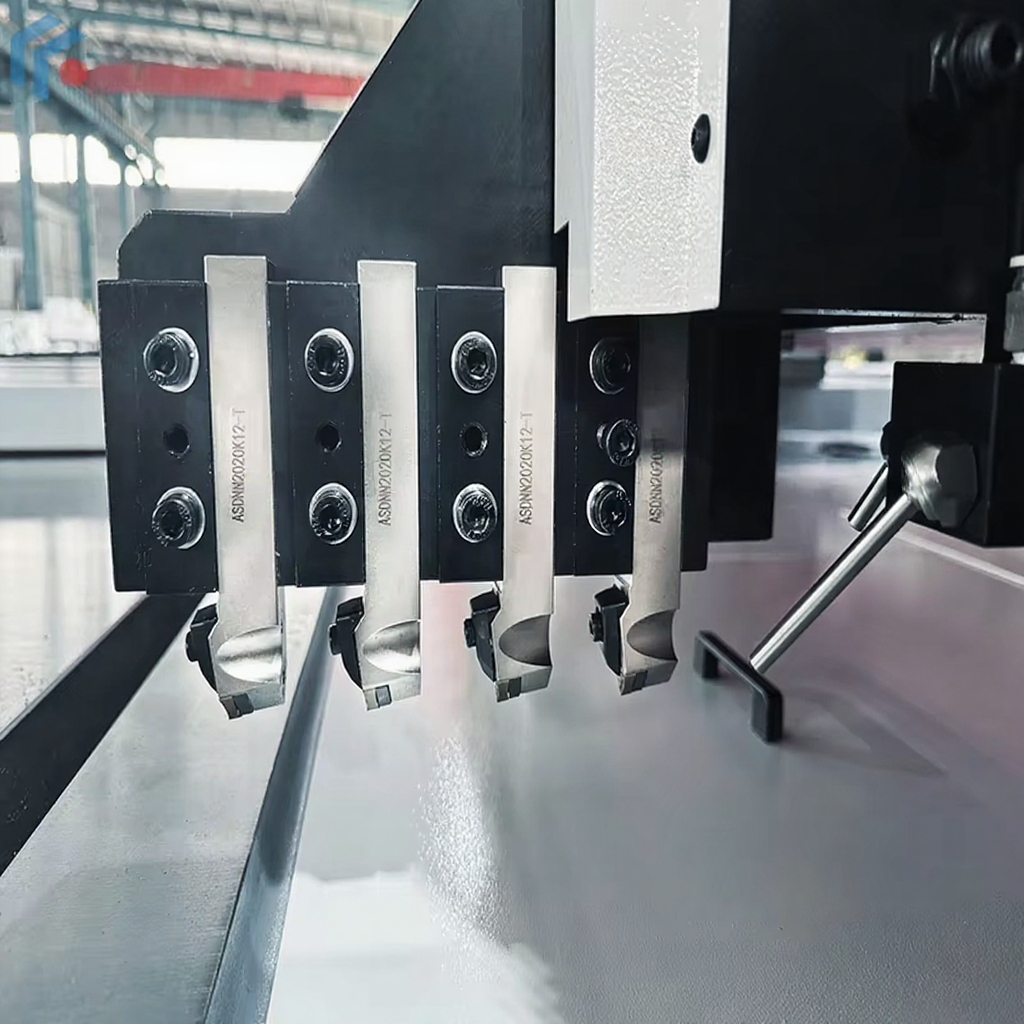

Grooving Blade
Grooving blades are typically made of high-strength steel or cast iron, offering excellent rigidity and wear resistance, ensuring stable support and precise positioning of the tool.

Grooving blades are typically manufactured from high-speed steel or cemented carbide, offering high hardness, wear resistance, and heat resistance, making them suitable for planing a variety of sheet metals.
Solicite una cotización
Grooving Blade

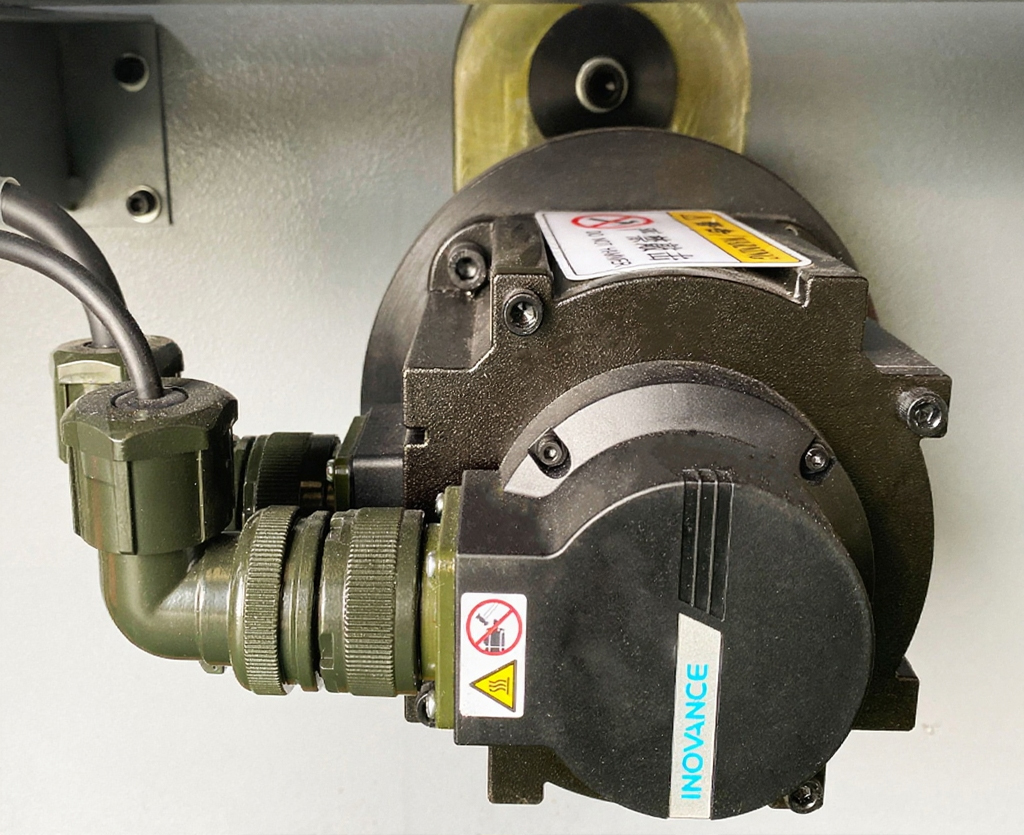

Servo Motor
This V grooving machine is driven by a servo motor and equipped with an advanced CNC system, ensuring long-term stability and reliability.

Servo motors enable precise position and speed control, making them ideal for applications requiring precise positioning and motion control.
Solicite una cotización
Servo Motor

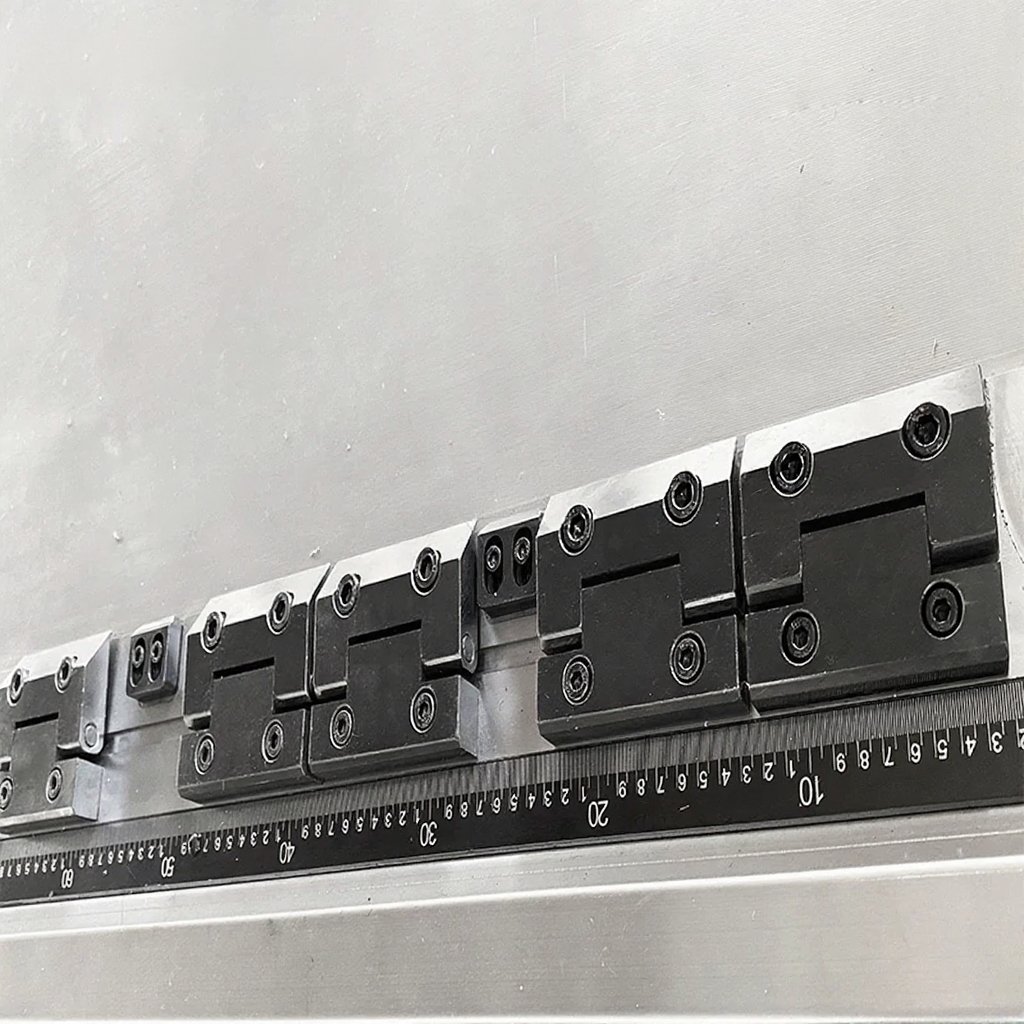

Pressing Plate
The pressing plate of a horizontal V grooving machine is constructed from high-strength steel or alloy steel, securing the workpiece through mechanical or hydraulic clamping to ensure machining accuracy.

The adjustable design accommodates metal sheets of varying sizes and shapes and features precise positioning to ensure consistent slotting. Pressing plate stability is a key factor in ensuring the machine.
Solicite una cotización
Pressing Plate

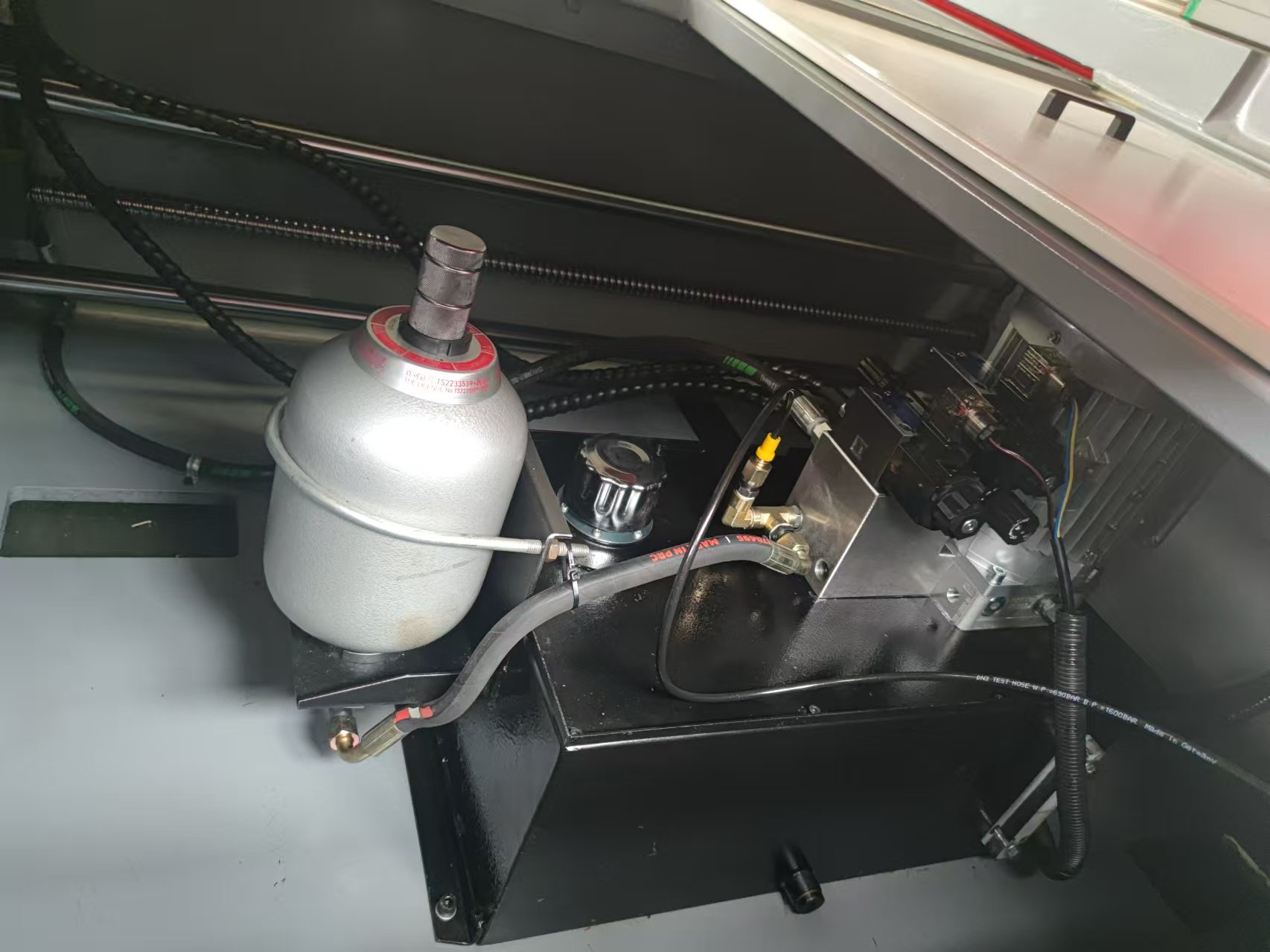

Hydraulic System
The horizontal V grooving machine adopts the Japanese Yuken hydraulic system.

The exceptional performance of the machine guarantees the ongoing durability and robustness of its powertrain.
Solicite una cotización
Hydraulic System

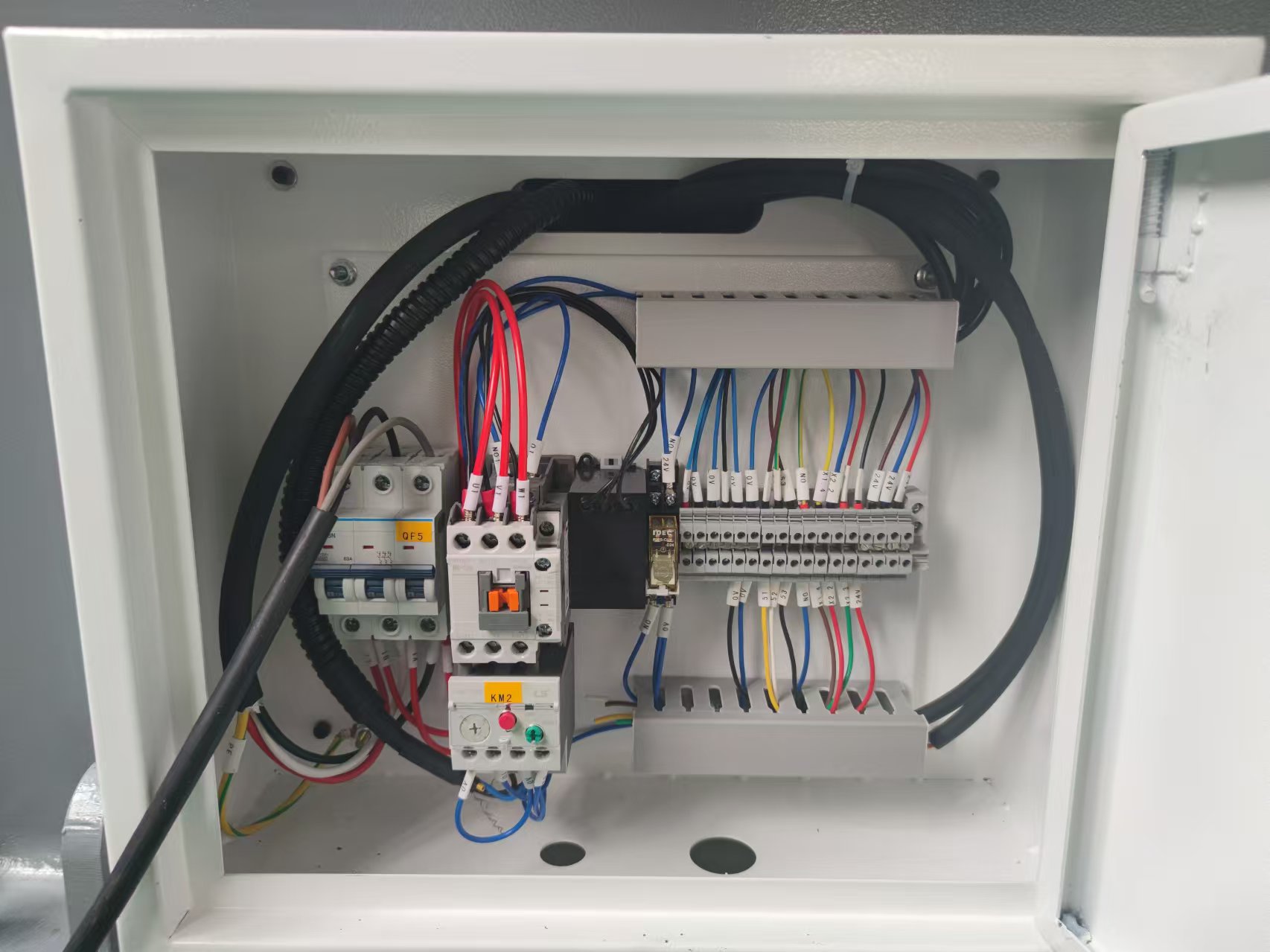

Electrical Parts
Advanced technology integrated into the system meets high operational demands, optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
Solicite una cotización
Electrical Parts

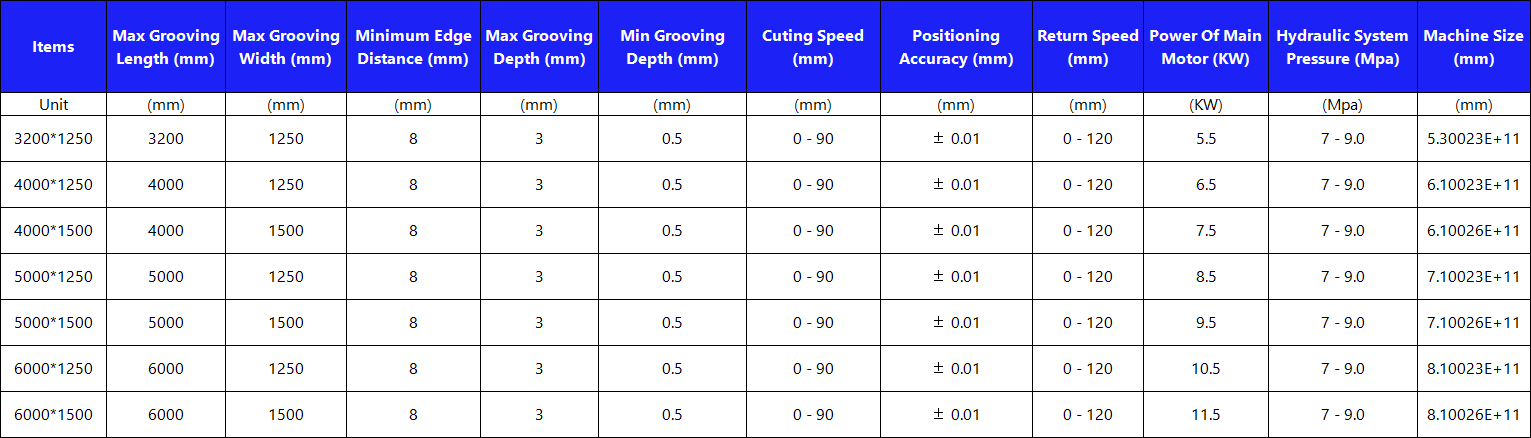

Especificaciones técnicas

Para especificaciones más detalladas, por favor no dude en ponerse en contacto con nosotros.
