Máquina ranuradora vertical en V

Una máquina ranuradora vertical en V es un dispositivo de procesamiento altamente eficiente y preciso diseñado específicamente para ranurar metal u otros materiales laminados. Utiliza un corte vertical o en ángulo para crear una variedad de formas de ranuras, incluyendo ranuras rectas, en V y en U.

Normalmente está equipada con un sistema CNC y ofrece alta precisión, automatización y versatilidad. Se utiliza ampliamente en el procesamiento de láminas de metal, la fabricación de productos metálicos, así como en las industrias de electrodomésticos, automotriz y aeroespacial.

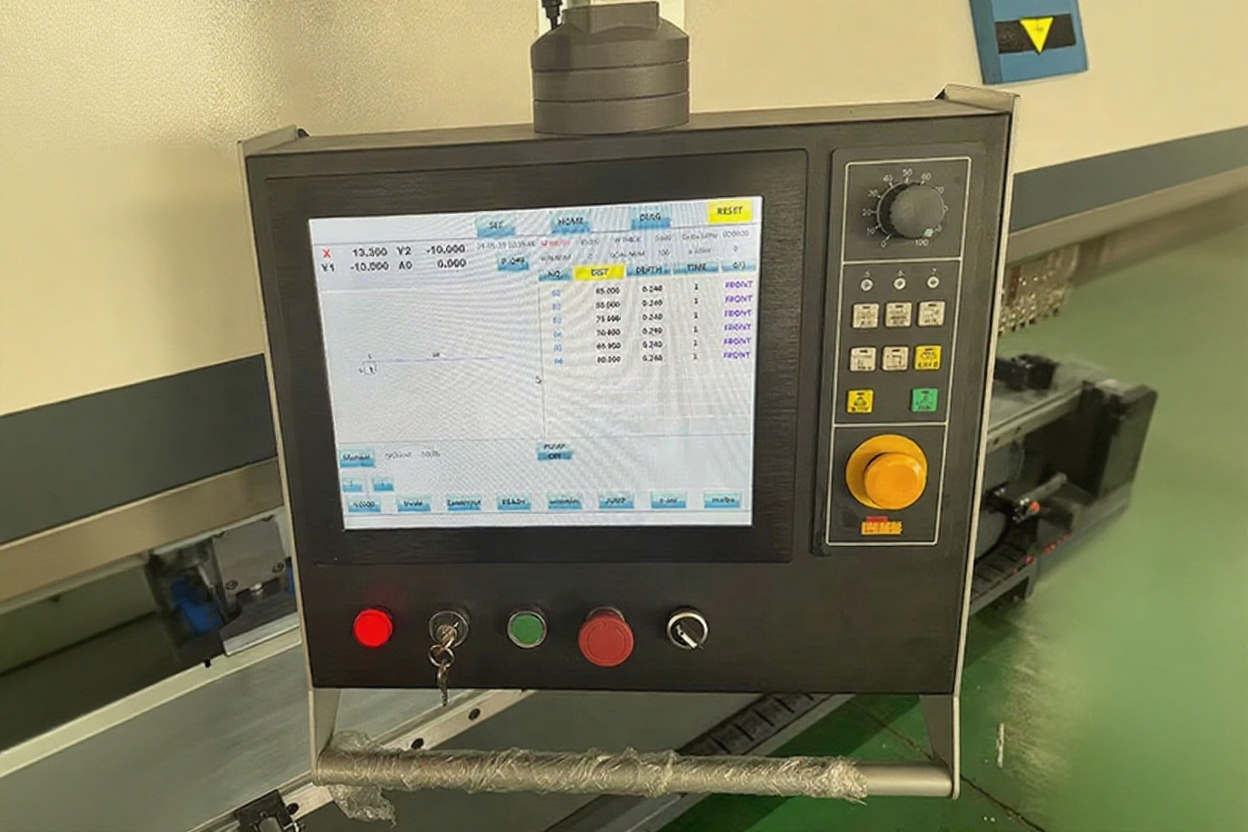

Control System

The Abel CNC Control System delivers high-precision machining with support for multiple programming methods, including G-code. Its intuitive interface and automation features boost efficiency, while real-time monitoring ensures accuracy.

Built for reliability, it handles complex tasks with fast response times and minimal maintenance. Ideal for industrial use, Abel CNC combines precision, ease of use, and durability for superior performance.

Solicite una cotización

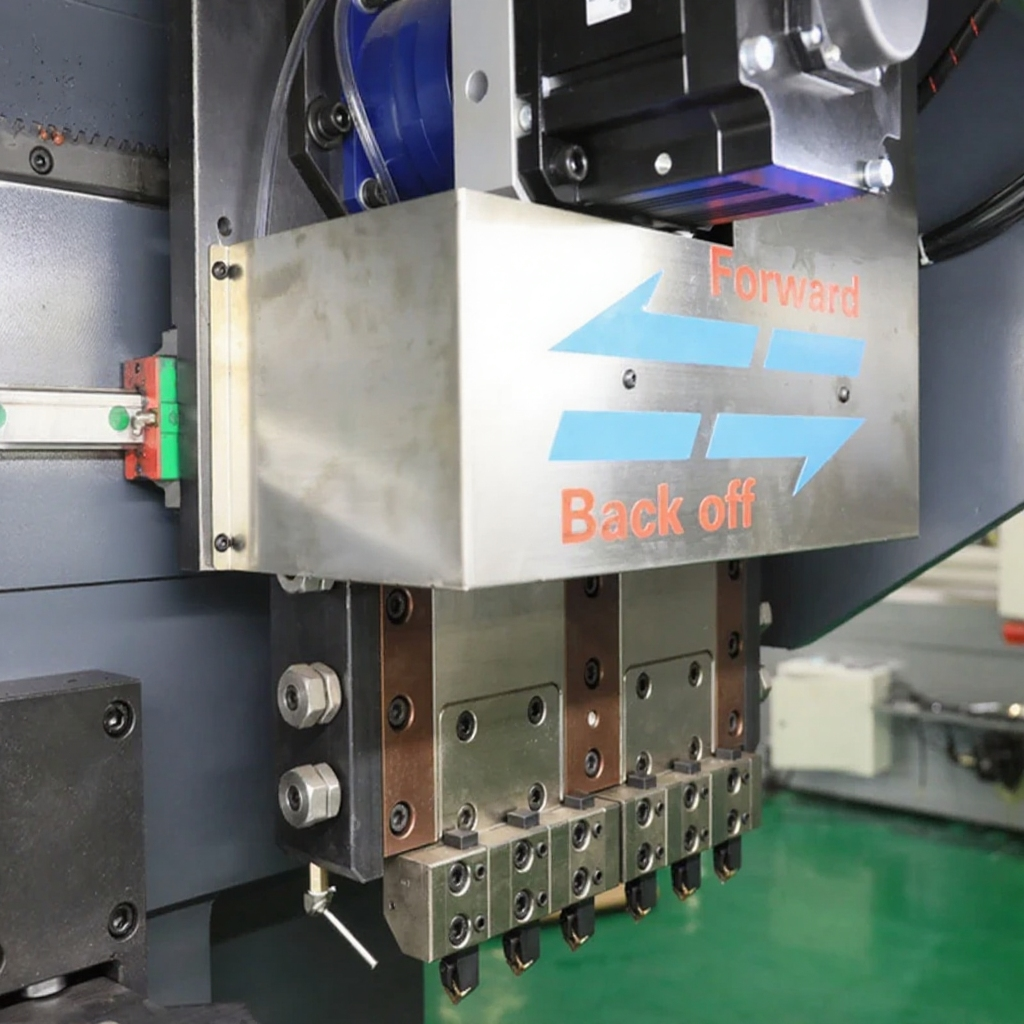

Grooving Blade

Grooving blades are typically made of high-strength steel or cast iron, offering excellent rigidity and wear resistance, ensuring stable support and precise positioning of the tool.

Grooving blades are typically manufactured from high-speed steel or cemented carbide, offering high hardness, wear resistance, and heat resistance, making them suitable for planing a variety of sheet metals.

Solicite una cotización

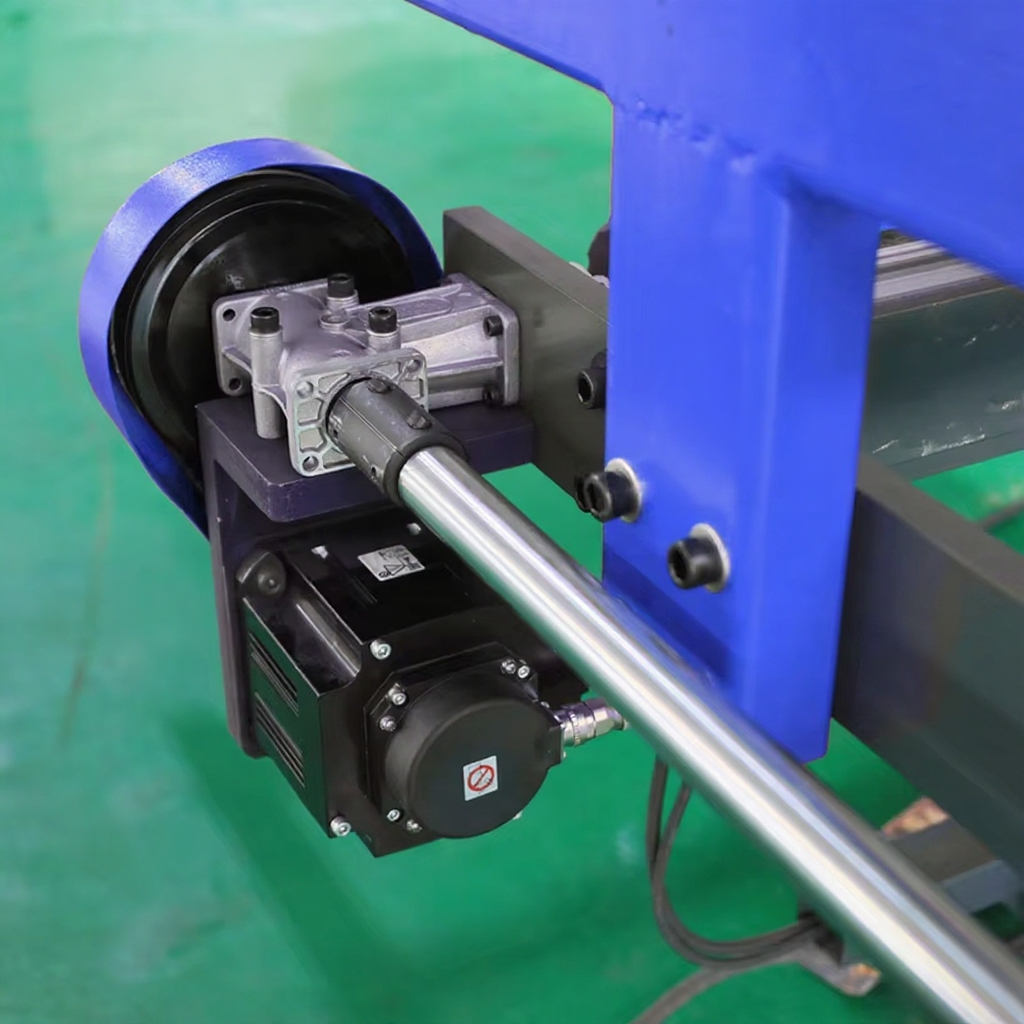

Servo Motor

This V grooving machine is driven by a servo motor and equipped with an advanced CNC system, ensuring long-term stability and reliability.

Servo motors enable precise position and speed control, making them ideal for applications requiring precise positioning and motion control.

Solicite una cotización

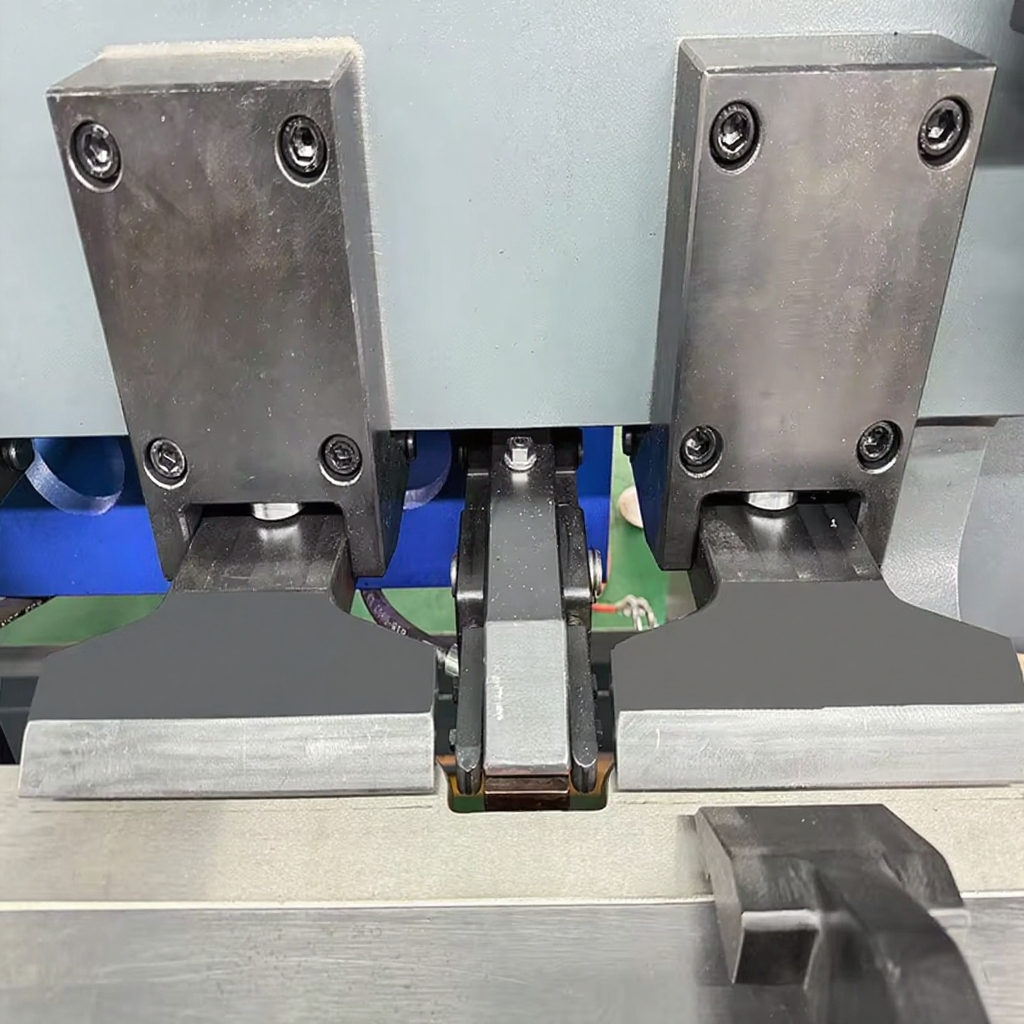

Pressing Plate

The pressing plate of a vertical V grooving machine is constructed from high-strength steel or alloy steel, securing the workpiece through mechanical or hydraulic clamping to ensure machining accuracy.

The adjustable design accommodates metal sheets of varying sizes and shapes and features precise positioning to ensure consistent slotting. Pressing plate stability is a key factor in ensuring machini

Solicite una cotización

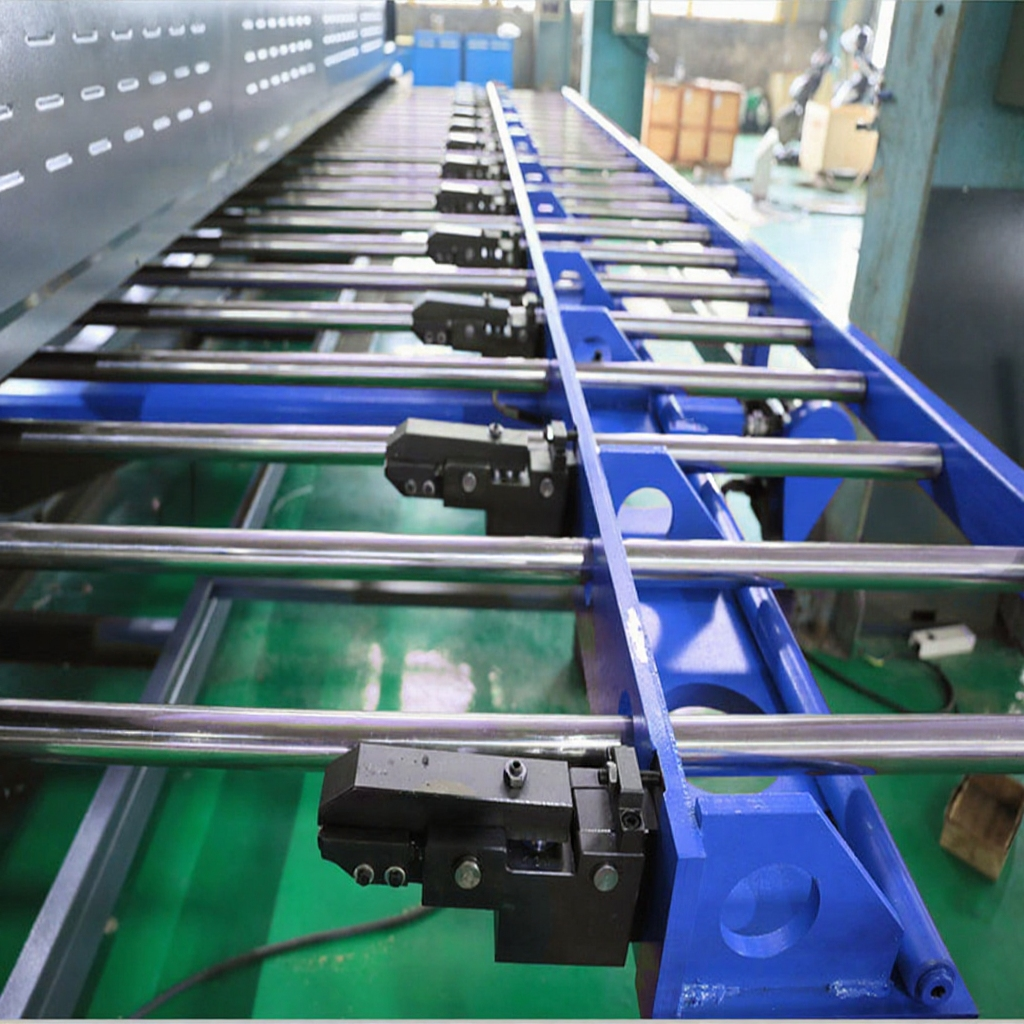

Backguage

The rear gauge feeding mechanism of a vertical V grooving machine is constructed of high-strength steel and driven by a servo motor or hydraulic system. Automatic feeding and precise positioning are achieved through a CNC system.

This mechanism allows for flexible adjustment of the gauge position and movement step length to accommodate processing of various sheet metal specifications. Its accuracy and stability directly impact the

Solicite una cotización

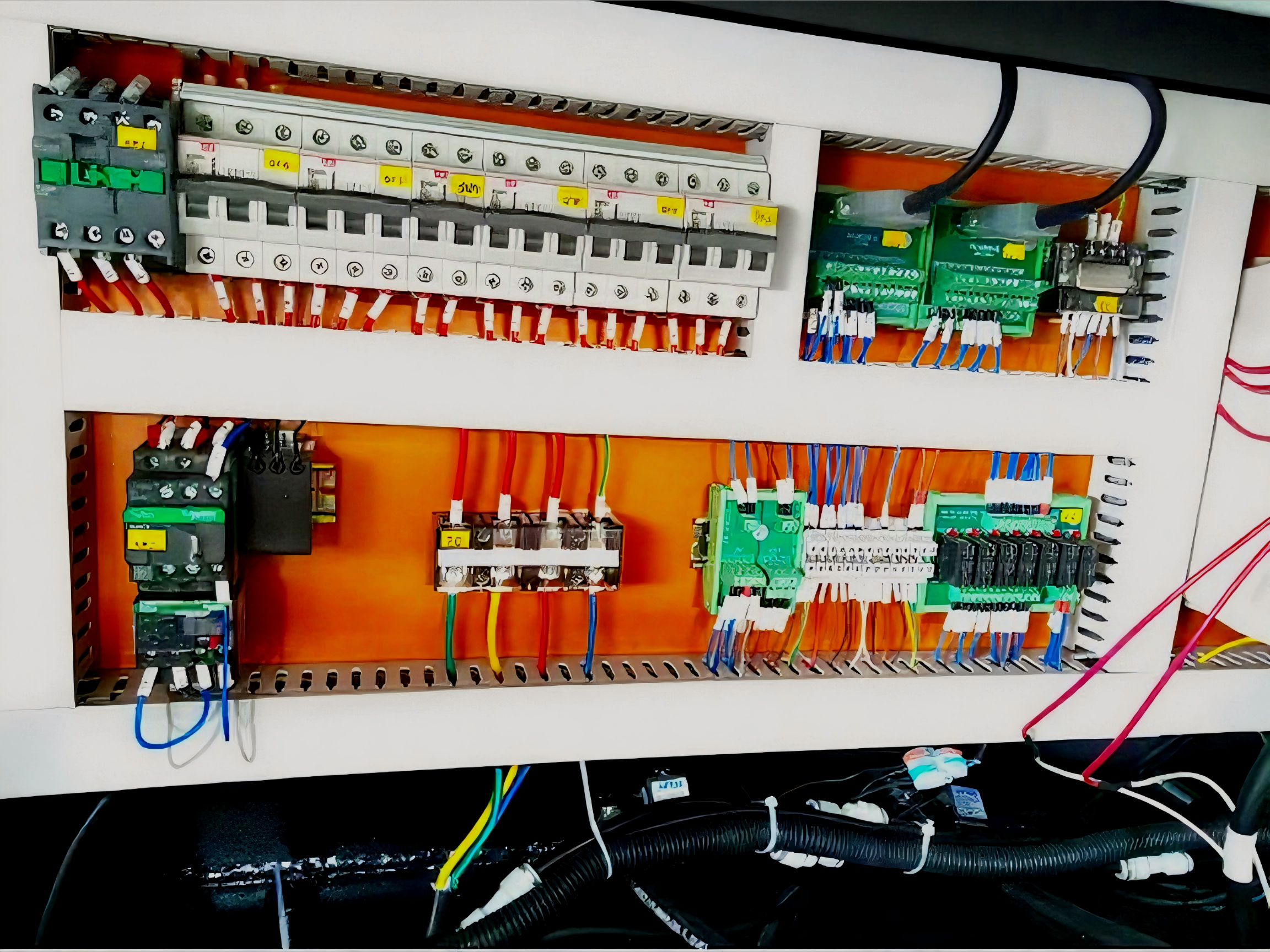

Electrical Parts

Advanced technology integrated into the system meets high operational demands, optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
