Plegadora eléctrica

La prensa plegadora eléctrica no requiere aceite hidráulico y es accionada por un cilindro eléctrico, lo que elimina la contaminación hidráulica y el impacto de la temperatura del aceite en la precisión de la máquina.

El cilindro eléctrico utiliza tecnología patentada por nuestra empresa y un husillo de bolas de alta precisión y gran resistencia para ofrecer una gran precisión y una larga vida útil.

Durante el plegado, el cilindro es accionado por un servomotor, que consume una potencia mínima durante las carreras descendentes y de retorno. Esto hace que la máquina sea extremadamente eficiente desde el punto de vista energético, con un ahorro de más del 50 % en comparación con prensas plegadoras hidráulicas similares.

La prensa plegadora eléctrica se utiliza ampliamente en industrias como la de utensilios de cocina, armarios eléctricos, nuevas energías, almacenamiento de energía y ferretería.

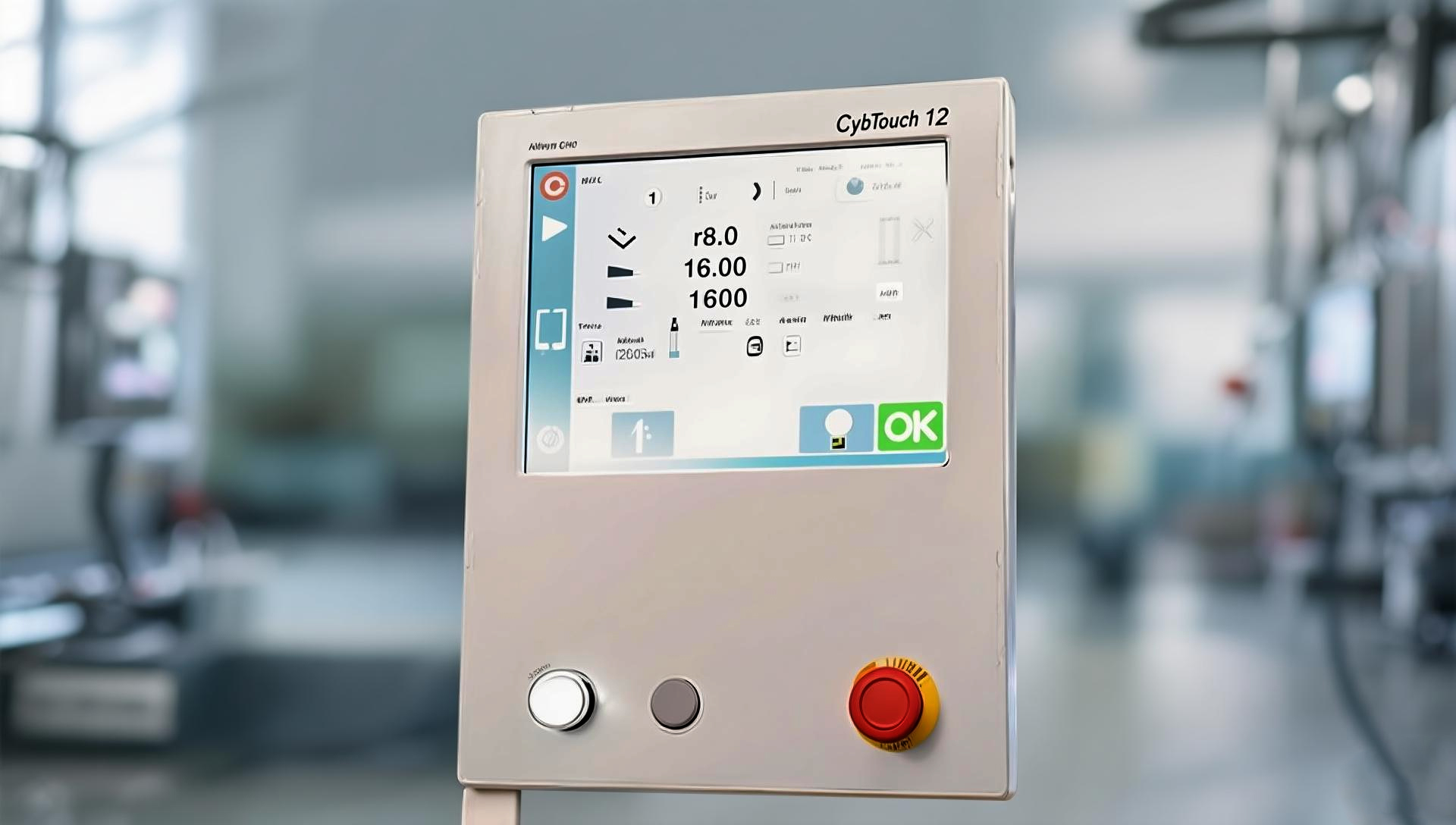

CNC Controller

Equipped with a Swiss CYBELEC C12 controller, intelligent angle compensation, and a material parameter database to improve bending accuracy and simplify operation.

High-end CNC systems are equipped with high-speed and high-precision control algorithms to ensure high bending accuracy and smooth motion.

Solicite una cotización

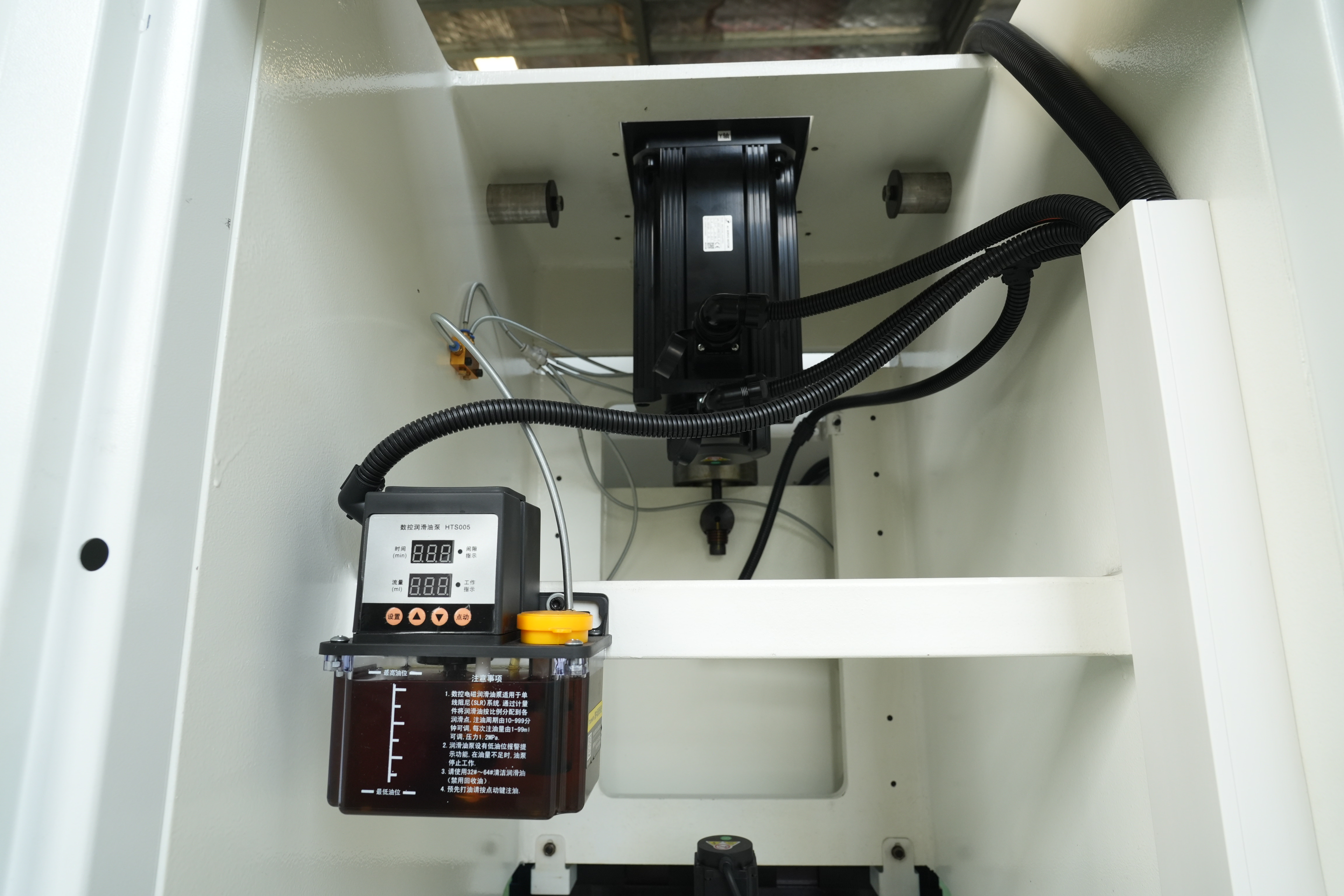

Electric Cylinder

The electric press brake does not require hydraulic oil and is driven by an electric cylinder, thus avoiding problems such as hydraulic contamination and the influence of oil temperature on machine tool accuracy.

It uses a heavy-loaded, high-precision ball screw with high precision and long service life.

Solicite una cotización

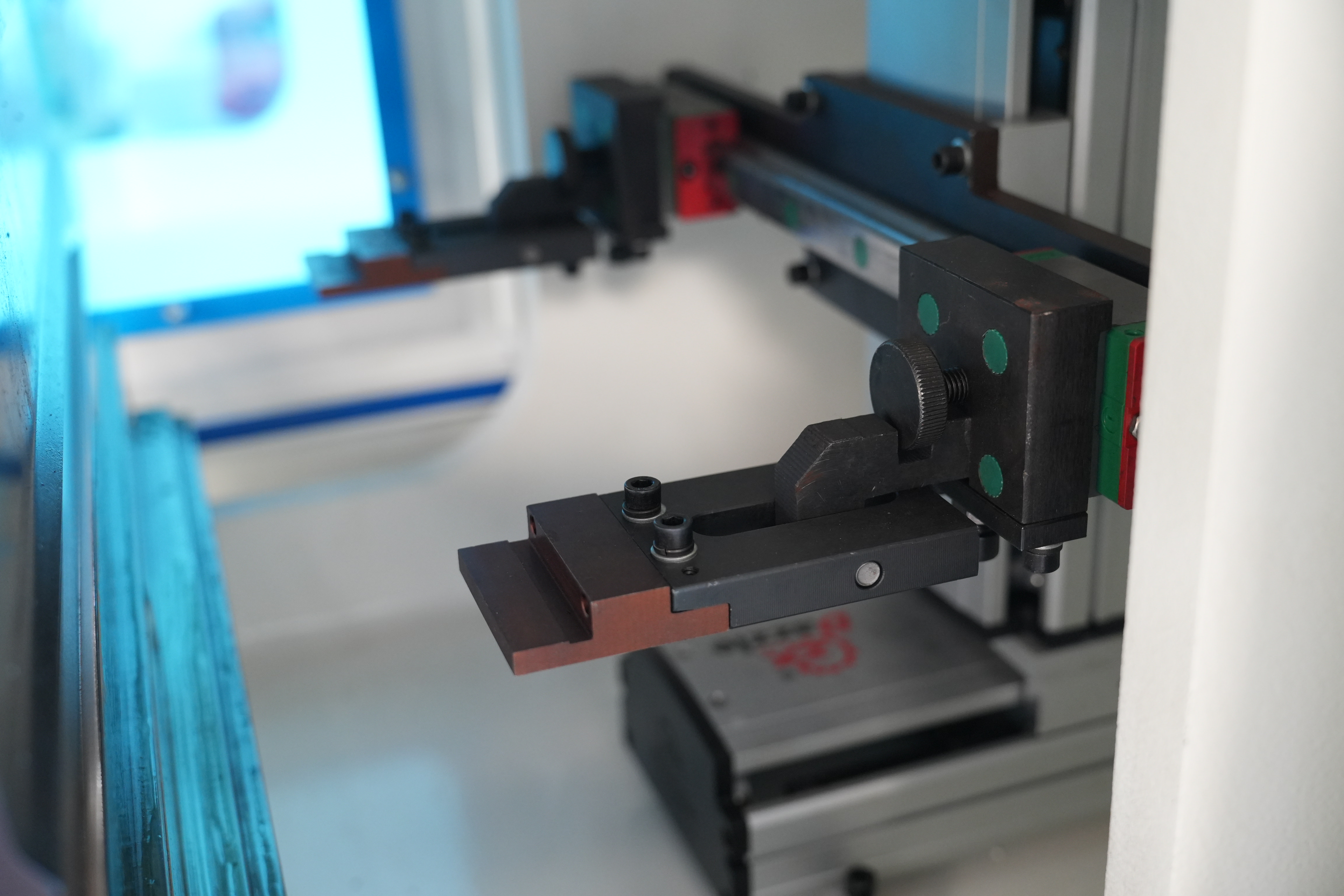

Finger Stop

The press brake finger stop is a positioning device installed at the rear of the bending machine.

It is used to accurately control the bending position of the plate. Its core function is to locate the edge of the plate through adjustable mechanical or CNC stops to ensure the dimensional consistency and processing accuracy of each bend. It is suitable for repeated positioning of multiple bending processes.

Solicite una cotización

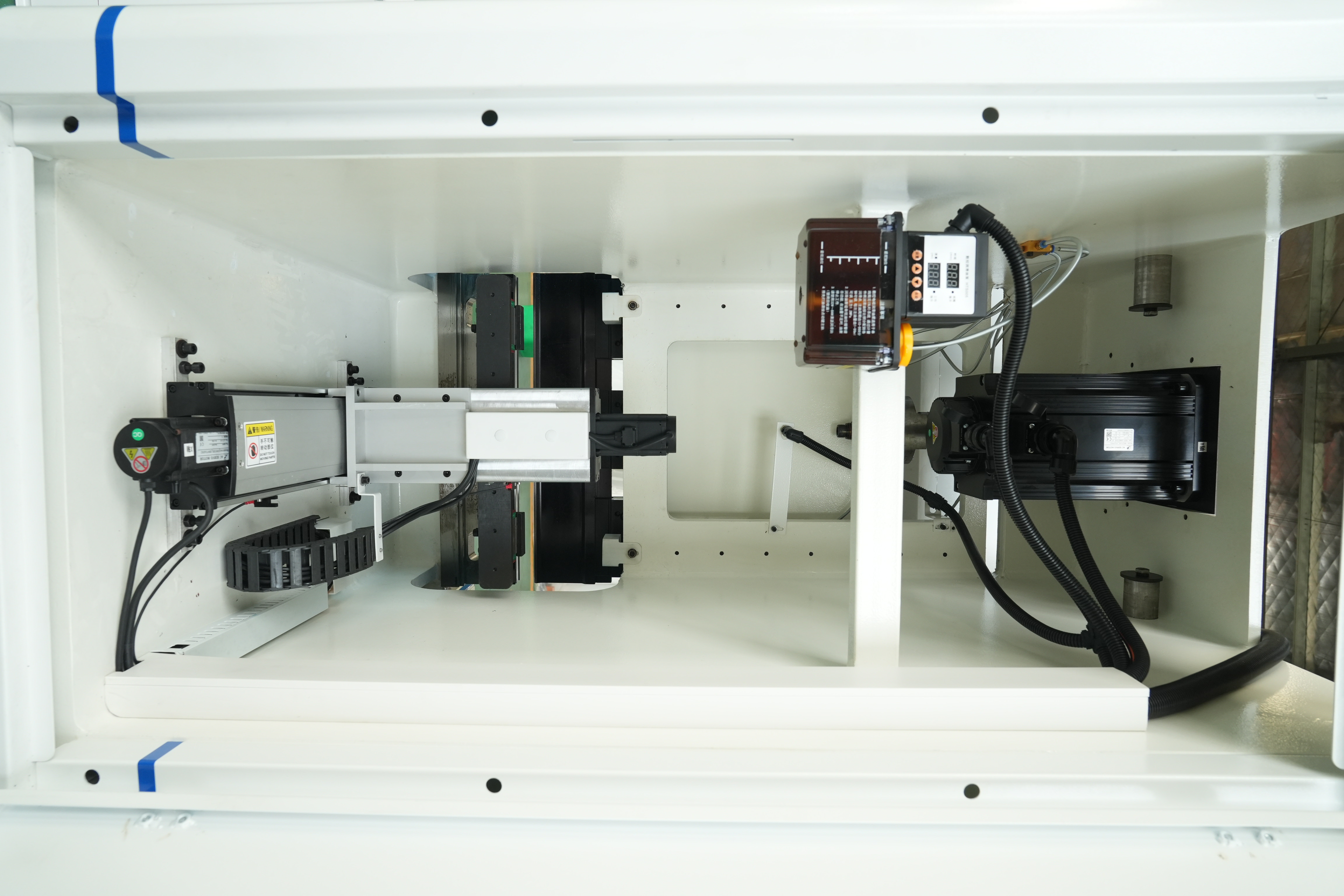

Backgauge

Servo motors drive ball screws on the X-axis, R-axis, and Z-axis manually for precise positioning in the rear material stop system.

Utilizes dual linear guide structure for high-precision positioning and fast speeds, improving positioning accuracy and speed of servo motor drive.

Flexible selection of multiple shaft levels, reliable expansion of system functions, while maintaining precise positioning, to meet various production needs.

Solicite una cotización

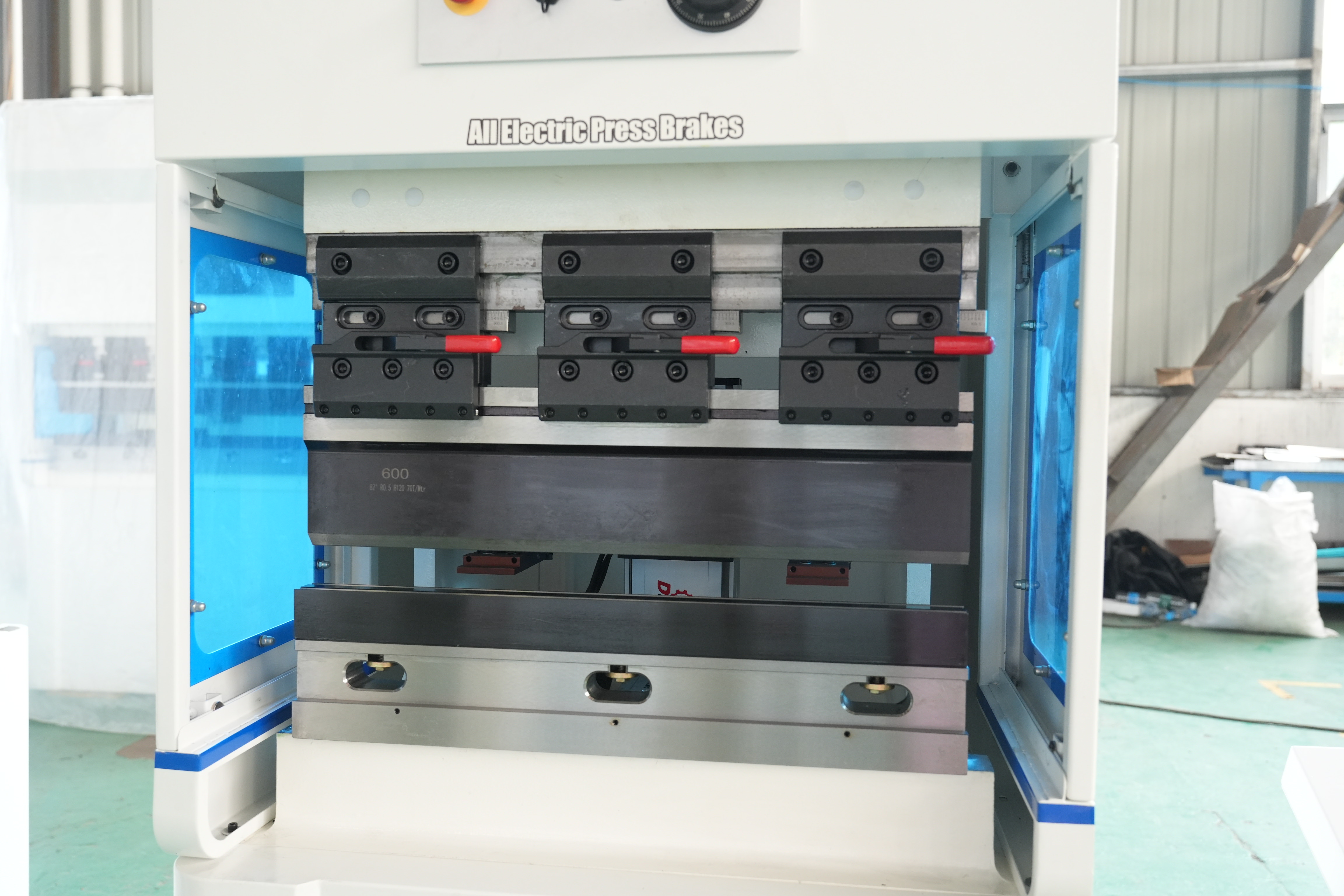

Fast Clamp

The fast clamp of the press brake is a clamping device used to quickly clamp and fix the bending mold.

Its function is to achieve the replacement and locking of the mold in seconds through a lever or hydraulic mechanism, greatly improving the mold change efficiency while ensuring the stability of the mold during the bending process.

Solicite una cotización

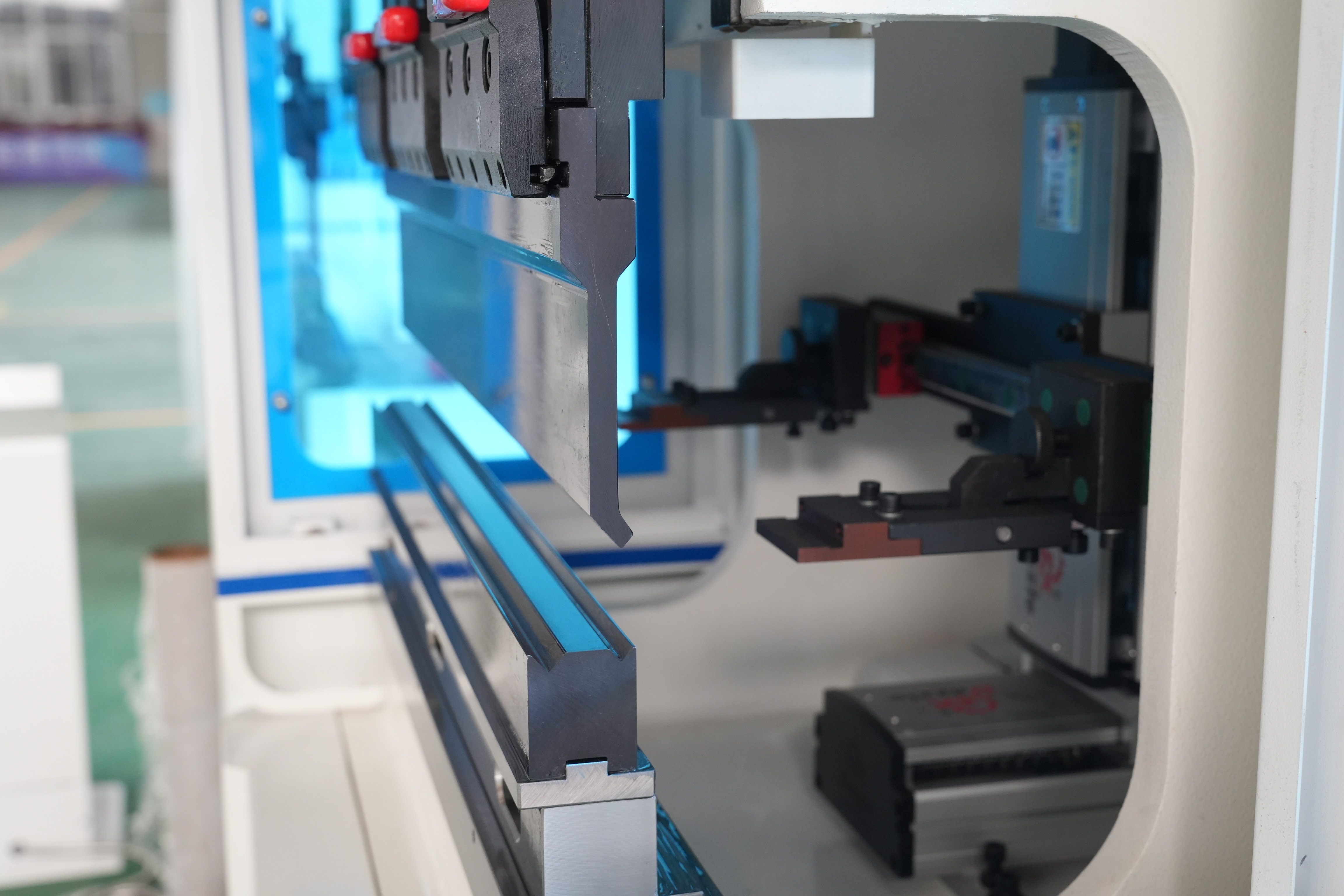

Molds & Dies

The upper die adopts a small gooseneck quick clamping die, and the lower die is designed with a double V core for easy loading and unloading and precise positioning. The upper die features a precision quick clamping function for easy die changing, increasing production efficiency.

The double V core design of the lower die enables flexible adjustments, reducing labor intensity and increasing production efficiency.
