Cizalla de viga oscilante QC12K

La cizalla de viga oscilante es un equipo tradicional de corte de metal que funciona mecánicamente y utiliza un sistema de transmisión mecánica fiable para mover la cuchilla hacia arriba y hacia abajo y cortar láminas de metal.
Es estable y adecuada para aplicaciones con requisitos de precisión de corte moderados.

Con un costo menor en comparación con las cizallas hidráulicas, es ideal para fábricas y talleres de tamaño pequeño a mediano. Se utiliza comúnmente para el procesamiento general de estructuras de acero y el mantenimiento rutinario, y maneja láminas de metal dentro de límites específicos.

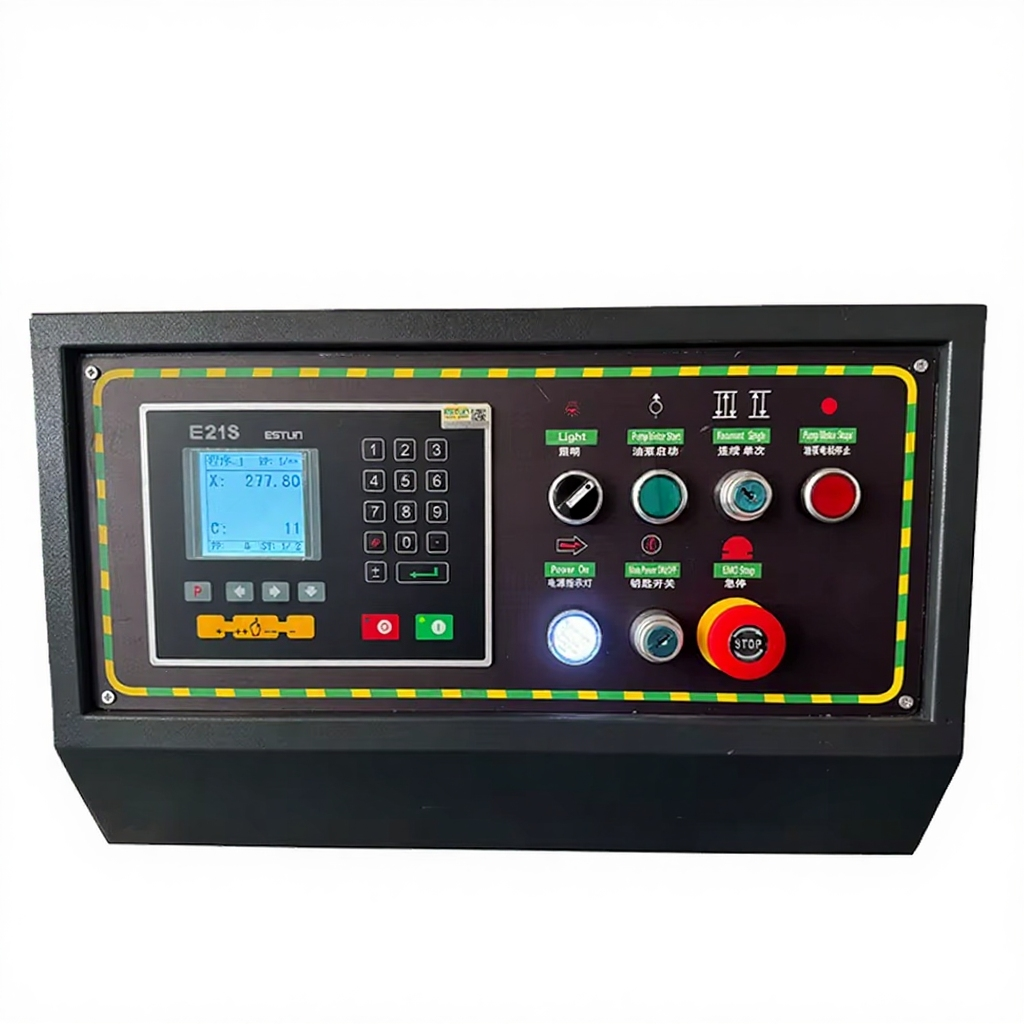

Control System

The system features dual programmable digital outputs, 40 program storage options, each with 25 steps.Built-in cutting time and retraction delay. One-touch parameter backup and restore.

Furthermore, we can choose the DAC310T system from the renowned Dutch company Delem, which automatically controls the cutting angle and blade gap for optimal performance.

Solicite una cotización

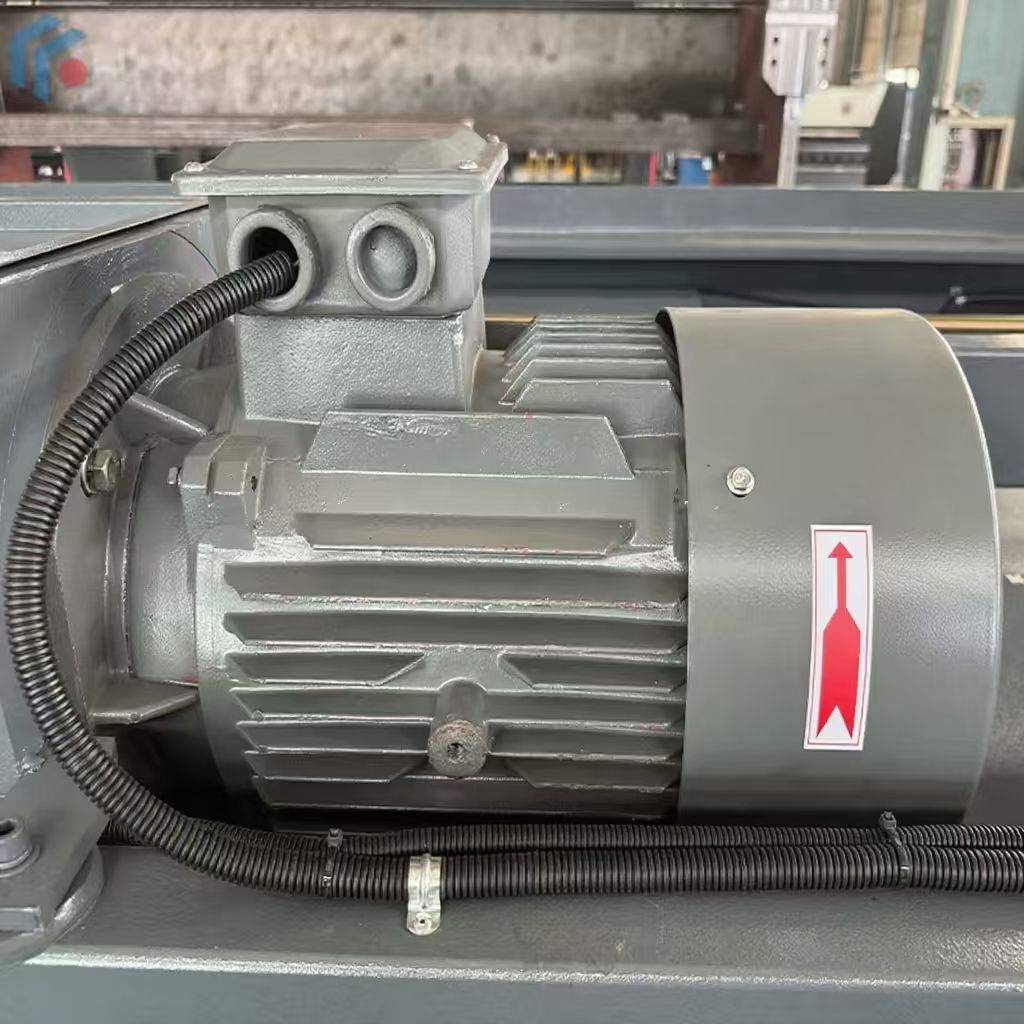

Motor

Motor ensures precise control over angles and dimensions , maintaining high accuracy in production processes.

Our high-performance main motor can be equipped with internationally recognized brands, such as Siemens, or with well-known Chinese

Solicite una cotización

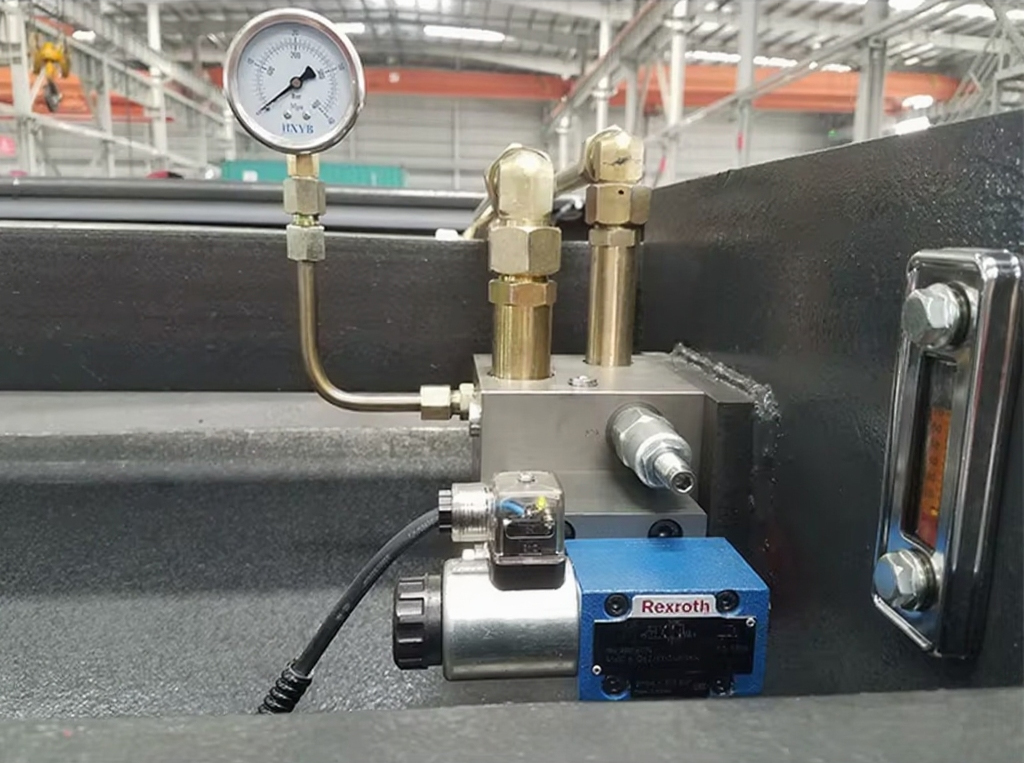

Hydraulic Valve

Bosch Rexroth valves provide reliable performance, ensuring long-term stability and enhancing the shearing machine’s durability.

We provide real-time oil pressure monitoring to ensure smooth oil circuit operations and stable equipment performance.

Thanks to our oil pressure overload protection system, oil leakage and valve jamming are rare occurrences on our machine.

Optimizing fluid flow reduces energy consumption, thereby lowering operational costs.

Solicite una cotización

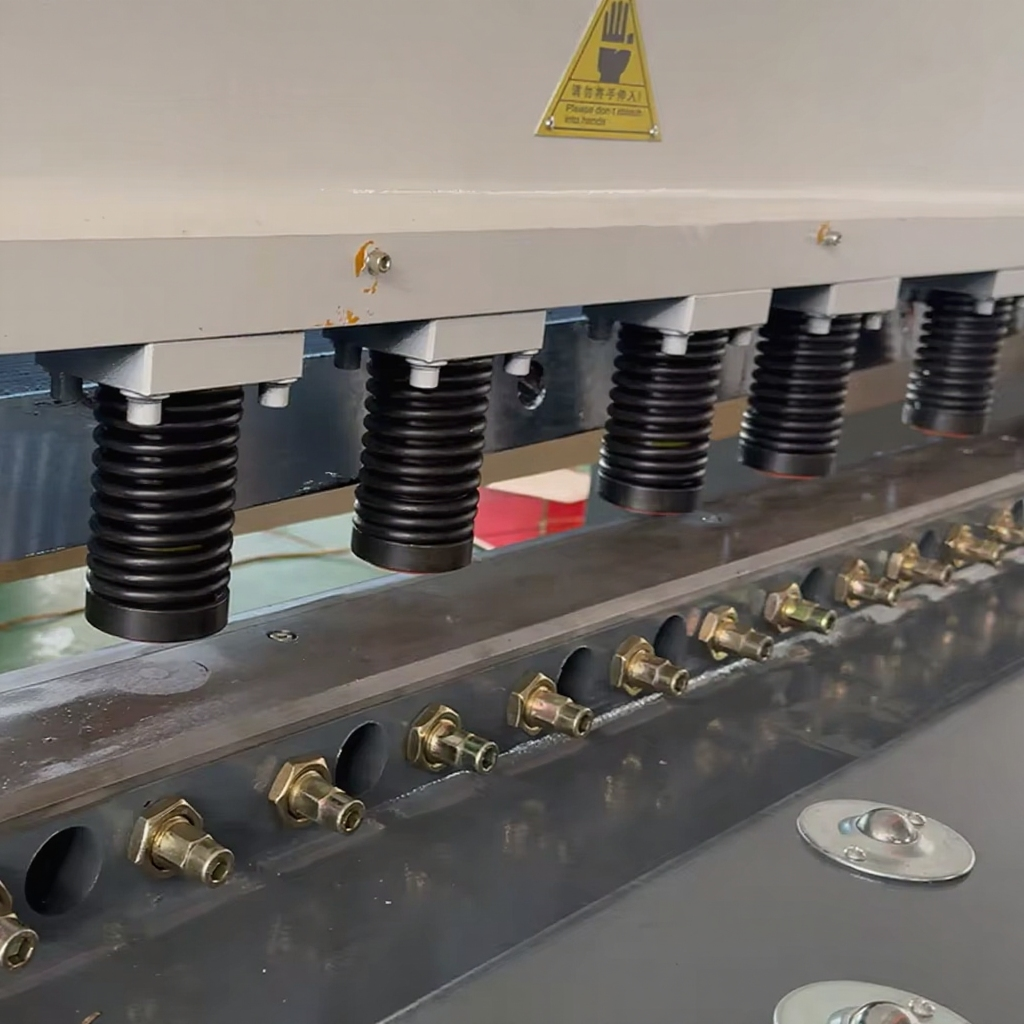

Presser

The presser foot firmly secures the material , preventing movement during shearing , ensuring line accuracy and consistency.

The presser foot evenly distributes pressure during shearing , preventing deformation and maintaining material flatness and shape.

The flexible design of the presser foot accommodates different thicknesses and materials , ensuring optimal shearing results.

Solicite una cotización

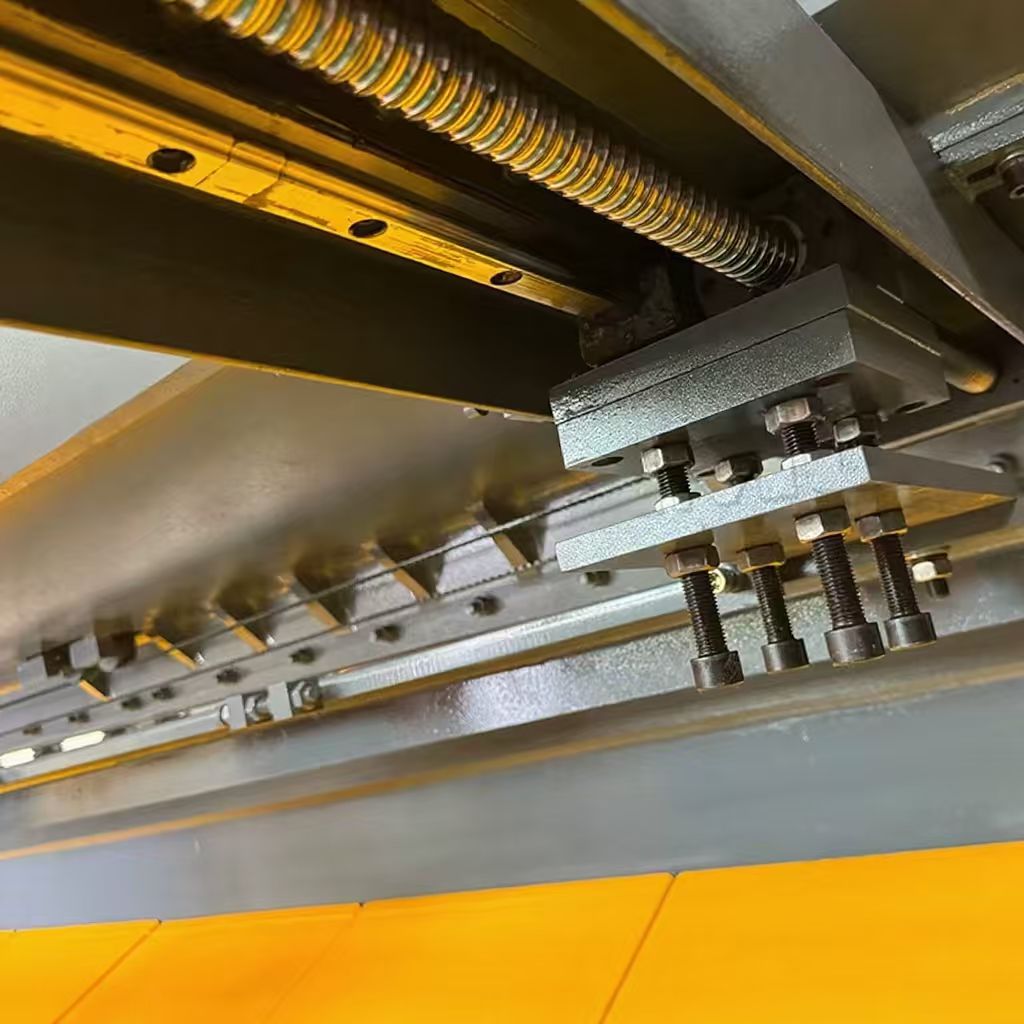

Ball Screw And Line Guide

The linear guide rail and ball screw ensure precise positioning of the back gauge , essential for accurate cutting.

The ball screw’s transmission and linear guide rail’s stability provide smooth back gauge movement , reducing vibration and noise.

Solicite una cotización

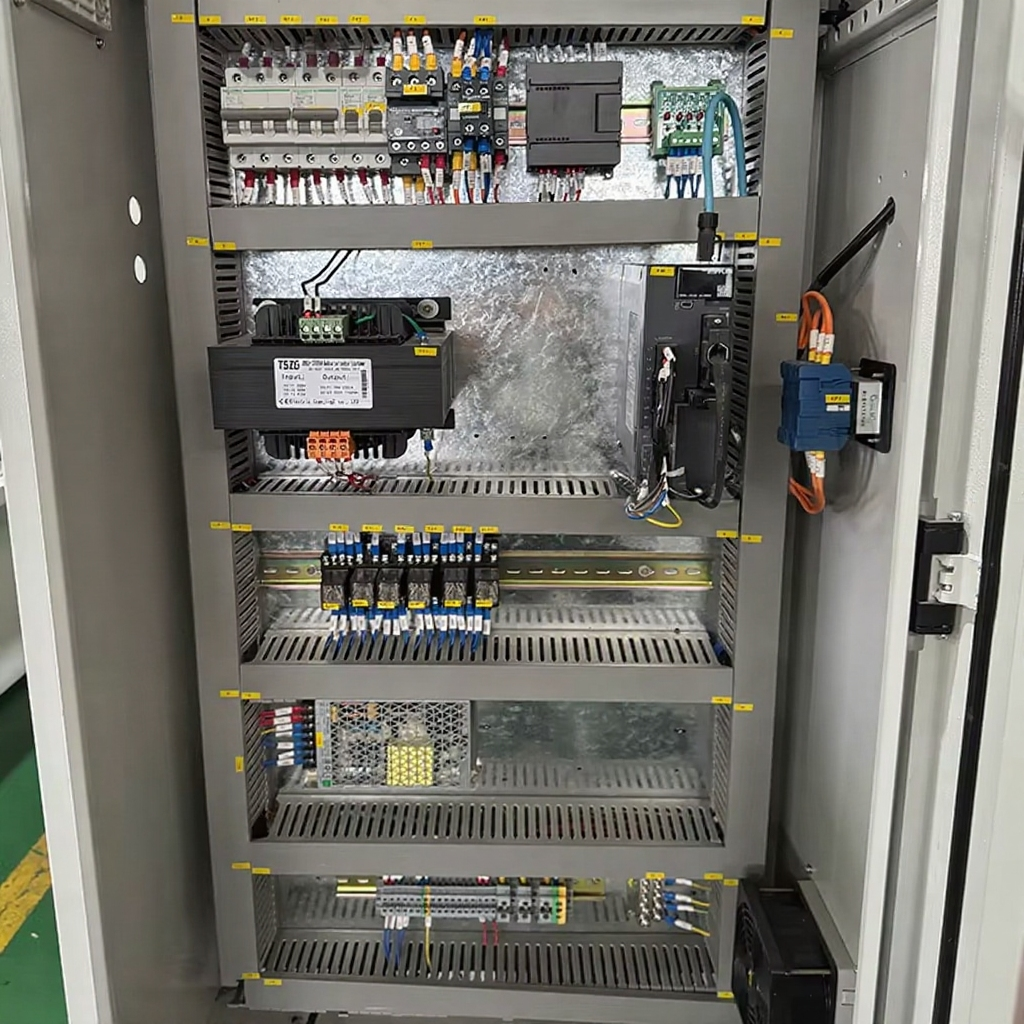

Electrical Parts

Advanced technology integrated in to the system meets high operational demands , optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
